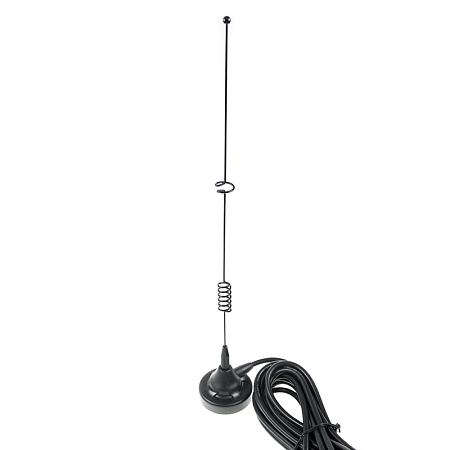

Omnidirectional GSM antenna
Omnidirectional antenna with a gain 6 dBi for GSM technology. The antenna operates in frequency bands 900/1800/2100 MHz. The antenna is suited for modems/routers. It is supplied with 5 m cable RG58 with N(m) connector. The antenna base can have a magnetic base.
Connector specifications N(m):
A connectors with a screw-thread mechanism. N connectors are characterized by high reliability and mechanical stability. The characteristic impedance of the connector is 50 Ohm and the working frequency ranges up to 11 GHz. N connectors are used, for example, to connect wireless WLAN devices, satellite systems and GSM / GPS / Wi-Fi antennas.
Connector specifications RG58:
The RG58 coaxial cable is compatible with connectors applicable to a 5 mm cable diameter. It is mainly used for the 0-1 GHz frequency range, it can also be used for higher frequencies, but at the cost of higher attenuation. The characteristic impedance of the cable is 50 Ω. The reduction factor is fixed at 0.66. The operating temperature range is -20 to 75 ° C. This cable is suitable for external WiFi / GPS / GSM antennas. It is also often used for creating cable adaptors with connectors such as BNC / FAKRA / FME / N / SMA / TNC and others.
Technical parameters can be found in the attached datasheet.
