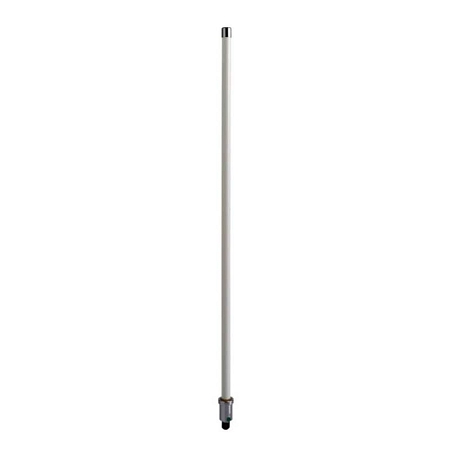

Antenna GSM/UMTS OMNI OM59, 824-960/1770-2170 MHz, 7 dBi, N(f)

Product code: AO-AUMTS-OM59 /Manufacturer: SECTRON

ao-aumts-om59-01 ao-aumts-om59-03 ao-aumts-om59-02 ao-aumts-om59-06 ao-aumts-om59-05

50.13 EUR Without VAT

In stock < 10 pcs When do I get the item?

guarantee 24 months
Subject*
Name and surname*
E-mail*
Inquiry*
By submitting the form, you agree to the privacy policy.
Your name and surname*
E-mail*
Send e-mail*
Message*
By submitting the form, you agree to the privacy policy.

Description

Omnidirectional GSM/UMTS antenna

Omnidirectional outdoor antenna for GSM/UMTS technologies. The antenna operates in frequency bands 800/900/1800/1900/2100 MHz. Thanks to its precise construction, this antenna has an excellent weather resistance which makes it suitable for outdoor installations. The antenna is equipped with an N (f) connector.

The package contains a holder that ensures a firm and stable attachment of the antenna.

Connector specifications N:

Connectors with a screw-thread mechanism. N connectors are characterized by high reliability and mechanical stability. The characteristic impedance of the connector is 50 Ohm and the working frequency ranges up to 11 GHz. Temperature range is -65 °C to +165 °C. N connectors are used, for example, to connect wireless WLAN devices, satellite systems and GSM / GPS / Wi-Fi antennas.

Technical parameters can be found in the attached datasheet.

Parameters

impendance: 50 Ohm Connector: N(f)
Maximum input power: 10 W max. Polarization: Linear
Execution: External Operational temperature: -30 °C - +90 °C
Dimensions: 20 x 1060 mm Directivity: Omni-directional
Protection rating: IP67 Technology : GSM / UMTS
Weight: 615 g VSWR: <2.0:1
Radiation angle: H 360° V 30° GAIN: 7 dBi
TYPE OF ATTACHMENT: Screw Mount
