Product code: AO-A868-G015-RS
Producer: SECTRON

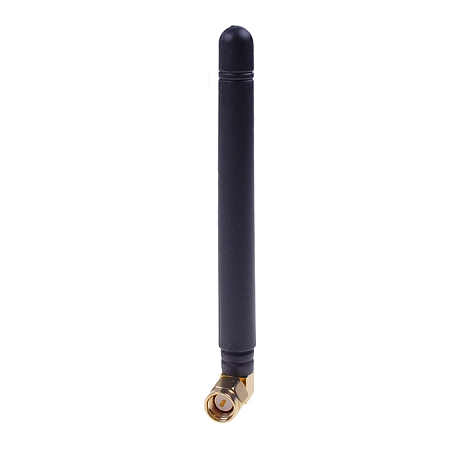

Antenna ISM Connector Mount G015, 868 MHz, 2 dBi, SMA(m) 90°

Product code: AO-A868-G015-RS
Producer: SECTRON

Antenna ISM Connector Mount G015, 868 MHz, 2 dBi, SMA(m) 90°

Omnidirectional antenna designed to receive ISM/LoRa/SIGFOX signal. The antenna operates in the 868 MHz band.

3.98incl. VAT (21%) / pc

excl. VAT 3.29 € / pc

In stock
i
- +
Add to compare

If the customer is not registered for VAT, the rate according to his country of residence will be added.

Detailed description

Omnidirectional ISM/LoRa/SIGFOX antenna

Omnidirectional antenna designed to receive ISM/LoRa/SIGFOX signal. The antenna operates in the 868 MHz band and is ideal for IoT networks. The antenna is equipped with an SMA (m) connector with a characteristic impedance of 50 Ω.

Connector specifications SMA:

These are high-frequency connectors with screw connection mechanism. The characteristic impedance of the connector is 50 Ohm and the operating frequency range up to 18 GHz. There are two types of SMA connectors, namely SMA and RP-SMA. Most of the current cellular routers are equipped with SMA connectors for connecting Wi-Fi / 2G / 3G / LTE / GPS antennas terminated by proticates. It is also used as a standard connector in RF measuring technology. They are characterized by high reliability, durability, high mechanical stability and optimal electrical properties.

More information can be found in the attached datasheet.

Parameters

Impedance 50  Ohm Cabel N/A
Connector SMA(m) Maximum input power 10  W
Polarization Linear Execuion External
Operating temperature -40 ~ +85  °C Dimensions 87.2 x 16.8 x 9.2  mm
Directivity Omnidirectional Technology LoRa , Sigfox , ISM
Weight 8.34  g Gain 2  dBi
VSWR <2.0:1 Radiation angle H 360 V 30
Type of attachment Connector mount
