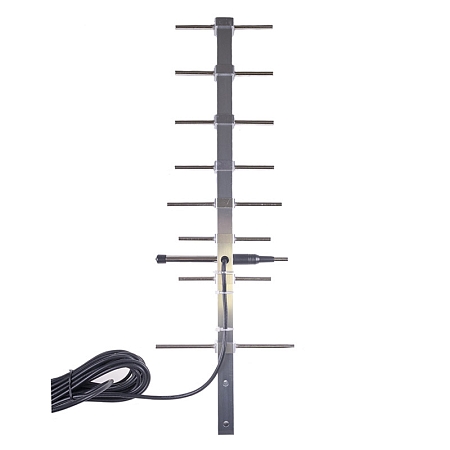

Antenna ISM YAGI 100, 868 MHz, 10 dBi, SMA(m), RG58/10m

Product code: AO-A868-YASS /Manufacturer: SECTRON

ao-alte-yass

43.95 EUR Without VAT

In stock When do I get the item?

guarantee 24 months
Subject*
Name and surname*
E-mail*
Inquiry*
By submitting the form, you agree to the privacy policy.
Your name and surname*
E-mail*
Send e-mail*
Message*
By submitting the form, you agree to the privacy policy.

Description

Directional antenna for ISM/LoRa/SIGFOX technologies

Directional antenna for ISM/LoRa/SIGFOX technologies. The antenna operates in frequency bands 868 MHz. Thanks to its precise construction, this antenna has an excellent weather resistance which makes it suitable for outdoor installations and is ideal for IoT networks. It is also used for remote control of automatic gate and gate drives. The antenna  is supplied with 10 m cable with SMA(m)  connector.

The package contains a bracket that ensures a firm and stable attachment of the antenna.

Specifications connector SMA:

These are high-frequency connectors with screw connection mechanism. The characteristic impedance of the connector is 50 Ohm and the operating frequency range up to 18 GHz. There are two types of SMA connectors, namely SMA and RP-SMA. The connection and disconnection of the connectors is guaranteed for up to 500 cycles. Temperature range is -65 °C to +165 °C. Most of the current cellular routers are equipped with SMA connectors for connecting Wi-Fi / 2G / 3G / LTE / GPS antennas terminated by proticates. It is also used as a standard connector in RF measuring technology. They are characterized by high reliability, durability, high mechanical stability and optimal electrical properties.

Specifications cable RG58:

The RG58 coaxial cable is compatible with connectors applicable to a 5 mm cable diameter. It is mainly used for the 0-1 GHz frequency range, it can also be used for higher frequencies, but at the cost of higher attenuation. The characteristic impedance of the cable is 50 Ω. The reduction factor is fixed at 0.66. The most common cables of this type have a temperature range of -20 to 75 ° C. This cable is suitable for external WiFi / GPS / GSM antennas. It is also often used for creating cable adaptors with connectors such as BNC / FAKRA / FME / N / SMA / TNC and others. There are also specially modified types of RG58 cables for outdoor use, which are UV resistant, as well as for use in extreme conditions. There are made of different materials, different qualities.

More information can be found in the attached datasheet.

Parameters

impendance: 50 Ohm Cable: RG58/U
Connector: SMA(m) Polarization: Linear
Execution: External Operational temperature: -40 °C - +85 °C
Dimensions: 540 x 179.8 x 26 mm Directivity: Directional
Technology : ISM / LoRa / SIGFOX Weight: 865 g
VSWR: <2.0:1 Radiation angle: H 30° V 30°
GAIN: 10 dBi TYPE OF ATTACHMENT: Mounting
