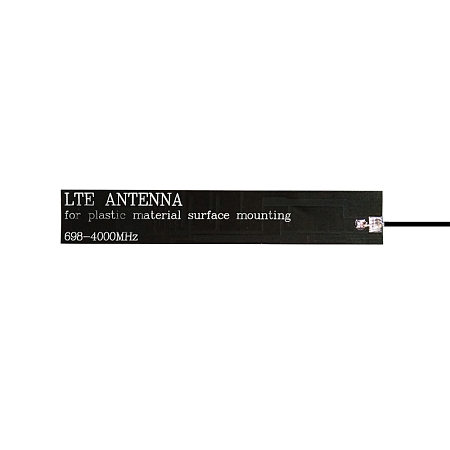

Antenna LTE/5G Embedded FLEX G155, IPEX MHF(f) 90°, 1.13mm Coaxial Cable/100mm

Product code: AO-ALTE-FPCG155I100 /Manufacturer: SECTRON

ao-alte-fpcg155u500-01

For verification price, please contact us sales@sectron.cz or call us. Domestic Business: +420 556 621 030, International Business.: +420 556 621 020

Price on request

On request When do I get the item?

If the customer is not registered for VAT, the rate according to his country of residence will be added.
guarantee 24 months
Subject*
Name and surname*
E-mail*
Inquiry*
By submitting the form, you agree to the privacy policy.
Your name and surname*
E-mail*
Send e-mail*
Message*
By submitting the form, you agree to the privacy policy.

Description

Omnidirectional adhesive LTE/5G antenna

Omnidirectional adhesive antenna suitable as a receiver and transmitter of signal in LTE and is also designed for receiving and transmitting 5G signal. The antenna operates in bands 700/800/960/1700/2100/2400/2700/3300/3600 MHz. It is suitable for modems and routers. The antenna can be used in M2M as well as in IoT devices and systems. It is supplied with a 100 mm RF cable 1.13 mm, with an IPEX MHF connector. It comes with a 3M double-sided tape for easy assembly.

Cable specifications 1.13 mm:

The coaxial cable is compatible with connectors that are applicable to a 1.13 mm cable diameter. Due to its features and size, it is widely used in applications that require high-frequency transmission using miniature coaxial connections. It is suitable for applications involving RF communication equipment, as well as electronic measuring instruments. It is most often used for creating cable adaptors with connectors such as U.FL / SMA / FME / MCX / TNC and others. The resulting cable adaptors are most often used to connect external antennas to eg cellular modules or IoT / NB-IoT / WiFi / GNSS and other RF devices.

Connector specifications IPEX MHF:

IPEX MHF connectors are compatible with U.FL connectors for applications where there is very little space for connecting / interconnecting RF components. The characteristic impedance of the connector is 50 Ohm and the operating frequency range up to 9 GHz.


Technical parameters can be found in the attached datasheet.

Parameters

Certifikace: RoHS impendance: 50 Ohm
Cable: RF 1.13 Connector: IPEX-MHF(f) R/A
Material: FPC Maximum input power: 10 W max.
Input voltage: 2.2 – 5 V DC Polarization: Linear
Execution: External Operational temperature: -40 °C - +85 °C
Dimensions: 85 x 13.8 x 0.2 mm Directivity: Omni-directional
Technology : LTE VSWR: <3.0:1
GAIN: 5.2 dBi TYPE OF ATTACHMENT: Adhesive
