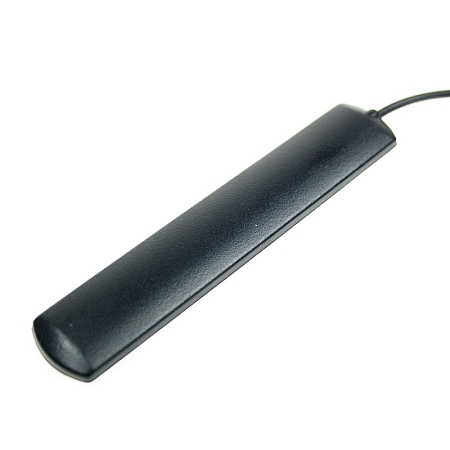

Omnidirectional LTE antenna
Omnidirectional antenna for GSM/UMTS/LTE technologies. The antenna operates in bands 800/900/1800/1900/2100/2600 MHz. It is suited for modems/routers. Comes with 3M double-sided tape for easy mounting on glass or plastic and with 3 m cable with SMA(m) connector.
Cable specifications RG174/U:
The cable labeled RG174/U is a basic variant of a coaxial cable that is compatible with connectors applicable to a cable diameter of 2.8 mm. The characteristic impedance of the cable is 50 Ω. The reduction factor is fixed at 0.66. The operating temperature range is -20 to 80 °C.
It is most often used for creating cable adaptors with connectors such as BNC/FAKRA/FME/MCX/MMCX/N/SMA/SMB/SMP/TNC and others. It is ideal for short and bending stressed connections in measuring and telecommunications technology, for GPS/GSM/WLAN antennas, antenna leads etc.
Connector specifications SMA:
These are high-frequency connectors with screw connection mechanism. The characteristic impedance of the connector is 50 Ohm and the operating frequency range up to 18 GHz. There are two types of SMA connectors, namely SMA and RP-SMA. The connection and disconnection of the connectors is guaranteed for up to 500 cycles. Temperature range is -65 °C to +165 °C. Most of the current cellular routers are equipped with SMA connectors for connecting Wi-Fi / 2G / 3G / LTE / GPS antennas terminated by proticates. It is also used as a standard connector in RF measuring technology. They are characterized by high reliability, durability, high mechanical stability and optimal electrical properties.
Technical parameters can be found in the attached datasheet.
