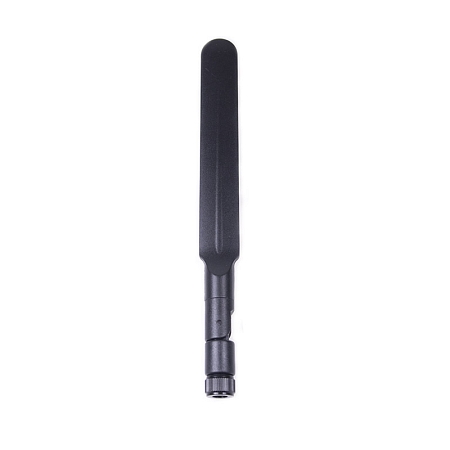

Antenna LTE Connector Mount FLAT G913L, 90°/180°, 5 dBi, SMA(m)

Product code: AO-ALTE-G913L /Manufacturer: SECTRON

ao-alte-g913l-lte-antenna-sectron-01 ao-alte-g913l-lte-antenna-sectron-02 ao-alte-g913l-lte-antenna-sectron-03

5.91 EUR Without VAT

In stock When do I get the item?

guarantee 24 months
Name and surname*
By submitting the form, you agree to the privacy policy.
Your name and surname*
Send e-mail*
By submitting the form, you agree to the privacy policy.


Omnidirectional GSM/UMTS/LTE antenna

Omnidirectional antenna with connector SMA for GSM/UMTS/LTE technologies. The antenna operates in bands 700/800/900/1700/1800/1900/2100/2400/2600/2700 MHz. It is suited for modems/routers.

Specification connector SMA:

These are high-frequency connectors with screw connection mechanism. The characteristic impedance of the connector is 50 Ohm and the operating frequency range up to 18 GHz. There are two types of SMA connectors, namely SMA and RP-SMA. Most of the current cellular routers are equipped with SMA connectors for connecting Wi-Fi / 2G / 3G / LTE / GPS antennas terminated by proticates. It is also used as a standard connector in RF measuring technology. They are characterized by high reliability, durability, high mechanical stability and optimal electrical properties.

Technical parameters can be found in the attached datasheet.


impendance: 50 Ohm Connector: SMA(m)
Maximum input power: 10 W max. Polarization: Linear
Execution: External Operational temperature: -10 °C - + 50 °C
Dimensions: 172 x 18 x 13 mm Directivity: Omni-directional
Technology : GSM / UMTS / LTE Weight: 22.55 g
VSWR: <2.0:1 Radiation angle: H 360° V 30°
GAIN: 5 dBi TYPE OF ATTACHMENT: Connector mount
