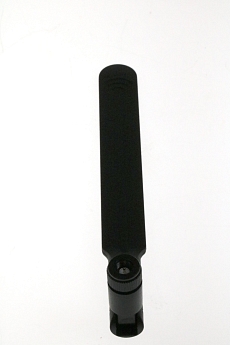

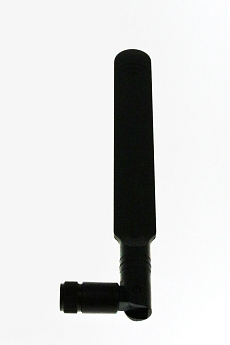

Antenna LTE Connector Mount FSMAK3, 90°/180°, 5 dBi, SMA(m)

Product code: AO-ALTE-FSMAK3
Producer: SECTRON

Antenna LTE Connector Mount FSMAK3, 90°/180°, 5 dBi, SMA(m)

Omnidirectional LTE antenna for GSM/UMTS/LTE technologies. The antenna operates in bands 690-2700 MHz.

10.87incl. VAT (21%) / pc

excl. VAT 8.98 € / pc

In stock
i
- +
Add to compare

If the customer is not registered for VAT, the rate according to his country of residence will be added.

Detailed description

Omnidirectional LTE antenna

Omnidirectional antenna for GSM/UMTS/LTE technologies. The antenna operates in bands 690-2700 MHz. It is suited for modems/routers and equipped with an SMA (m) connector.

Specification connector SMA:

These are high-frequency connectors with screw connection mechanism. The characteristic impedance of the connector is 50 Ohm and the operating frequency range up to 18 GHz. There are two types of SMA connectors, namely SMA and RP-SMA. The connection and disconnection of the connectors is guaranteed for up to 500 cycles. Temperature range is -65 °C to +165 °C. Most of the current cellular routers are equipped with SMA connectors for connecting Wi-Fi / 2G / 3G / LTE / GPS antennas terminated by proticates. It is also used as a standard connector in RF measuring technology. They are characterized by high reliability, durability, high mechanical stability and optimal electrical properties.

More information can be found in the attached datasheet.

Parameters

Impedance 50  Ohm Connector SMA(m)
Maximum input power 10  W Polarization Linear
Execuion External Operating temperature -10 ~ +50  °C
Dimensions 173 x 18  mm Directivity Omnidirectional
Technology LTE , GSM , UMTS Weight 23.74  g
Gain 5  dBi VSWR <2.0:1
Radiation angle H-360 V-30 Type of attachment Connector mount

10.87incl. VAT (21%) / pc

excl. VAT 8.98 € / pc
