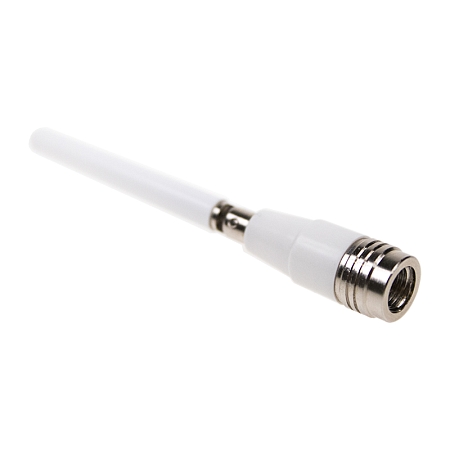

Antenna LTE Connector Mount TG09W, 90°/180°, 2 dBi, SMA(m), White

Product code: AO-ALTE-TG09-W /Manufacturer: SECTRON

ao-alte-tg09-w-01 09-w_02 09-w_03

7.62 EUR Without VAT

On request When do I get the item?

guarantee 24 months
Subject*
Name and surname*
E-mail*
Inquiry*
By submitting the form, you agree to the privacy policy.
Your name and surname*
E-mail*
Send e-mail*
Message*
By submitting the form, you agree to the privacy policy.

Description

Omnidirectional GSM/UMTS/LTE antenna

Omnidirectional the antenna with connector SMA (m) is suitable as receiver of signal in GSM/UMTS/LTE. The antenna operates in bands 700/800/900/1700/1800/2100/2600/2700 MHz. It is suited for modems and routers. This antenna is in white.

Connector specifications SMA:

These are high-frequency connectors with screw connection mechanism. The characteristic impedance of the connector is 50 Ohm and the operating frequency range up to 18 GHz. There are two types of SMA connectors, namely SMA and RP-SMA. Most of the current cellular routers are equipped with SMA connectors for connecting Wi-Fi / 2G / 3G / LTE / GPS antennas terminated by proticates. It is also used as a standard connector in RF measuring technology. They are characterized by high reliability, durability, high mechanical stability and optimal electrical properties.

Technical parameters can be found in the attached datasheet.

Parameters

Certifikace: RoHS impendance: 50 Ohm
Connector: SMA(m) Maximum input power: 10 W max.
Polarization: Linear Execution: External
Operational temperature: -20 °C - +80 °C Dimensions: 71.5 x 10 mm
Directivity: Omni-directional Technology : GSM / UMTS / LTE / GPS
Weight: 8.34 g VSWR: <3.5:1
GAIN: 2 dBi TYPE OF ATTACHMENT: Connector mounting
