Antenna LTE Embedded FLEX 002, 0 dBi, U.FL(f) RA, 1.37mm Coaxial Cable/100mm

Product code: AO-ALTE-FPC002U100 /Manufacturer: SECTRON

ao-alte-fpc002 uf-l-ra ao-alte-fpc002-bezkabelu

4.31 EUR Without VAT

On request When do I get the item?

guarantee 24 months
Subject*
Name and surname*
E-mail*
Inquiry*
By submitting the form, you agree to the privacy policy.
Your name and surname*
E-mail*
Send e-mail*
Message*
By submitting the form, you agree to the privacy policy.

Description

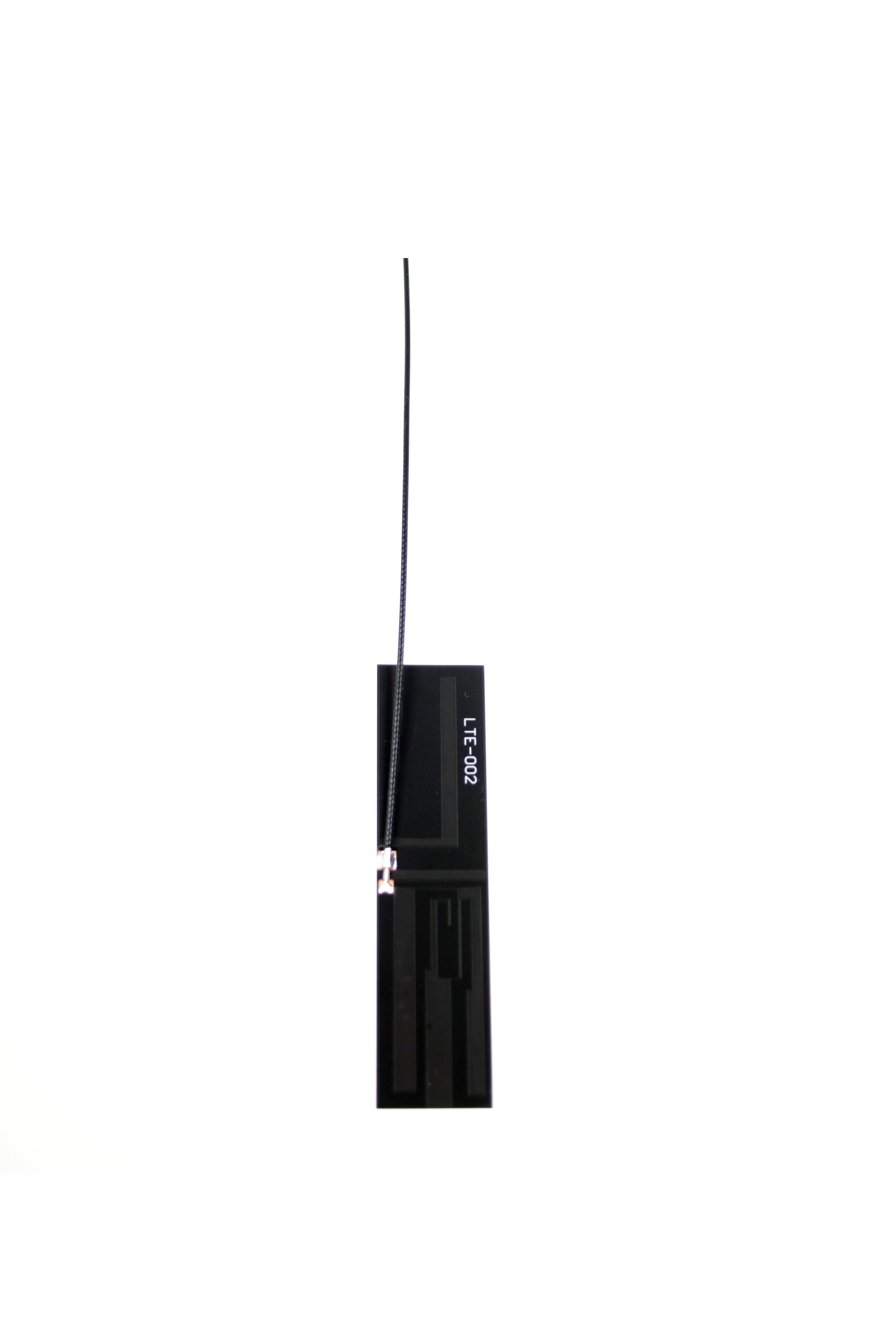

Omnidirectional GSM/UMTS/LTE antenna

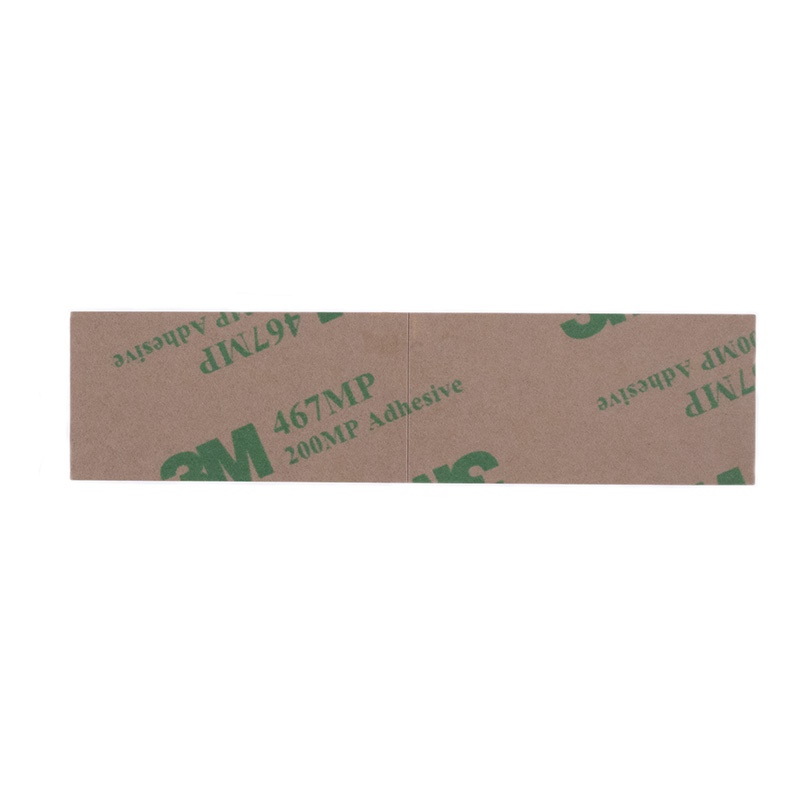

Omnidirectional antenna,  suitable as receiver/transmitter of signal in GSM/UMTS/LTE. The antenna operates in bands 700/800/900/1700/1800/1900/2100/2600 MHz. Cable length 100 mm. It is suited for modems/routers. Comes with 3M double-sided tape for easy mounting.

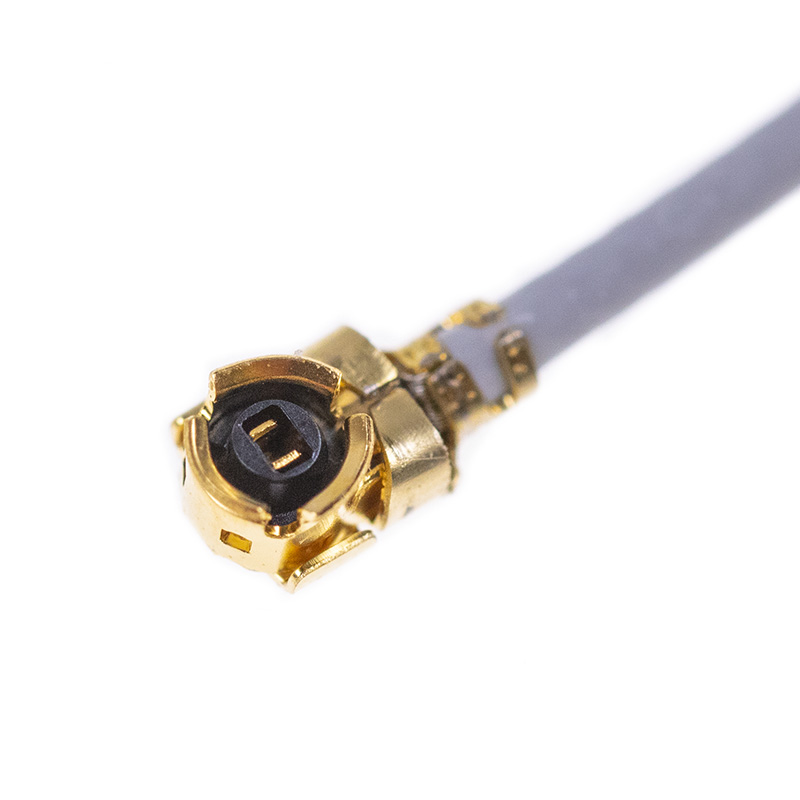

Specifications connector U.FL:

U.FL connectors are used in cases where there is very little space for connecting / interconnecting RF components eg in wireless communication devices, electronic measuring instruments, mobile phones, GPS and wireless LANs. Gold-plated central contact of the U.FL connector improves its properties. The characteristic impedance of the connector is 50 Ohm and the operating frequency ranges up to 6 GHz.

Cable specifications RF 1.37:

The RF 1.37 coaxial cable is compatible with connectors that are applicable to a 1.37 mm cable diameter. Due to its features and size, it is widely used in applications that require high-frequency transmission using miniature coaxial connections. It is suitable for applications involving RF communication equipment, as well as electronic measuring instruments. It is most often used for creating cable adaptors with connectors such as U.FL / SMA / FME / MCX / TNC and others. The resulting cable adaptors are most often used to connect external antennas to eg cellular modules or IoT / NB-IoT / WiFi / GNSS and other RF devices.


Technical parameters can be found in the attached datasheet.

Parameters

impendance: 50 Ohm Cable: RF 1.37
Connector: U.FL(f) R/A Maximum input power: 10 W max.
Polarization: Linear Execution: Internal
Operational temperature: -20 °C - +80 °C Dimensions: 20 x 80 x 0.1 mm
Directivity: Directional Technology : GSM / UMTS / LTE
Weight: 1.42 g VSWR: <2.0:1
Radiation angle: H 360° V 30° GAIN: 0 dBi
TYPE OF ATTACHMENT: Adhesive
