Product code: AO-ALTE-FPC001
Producer: SECTRON

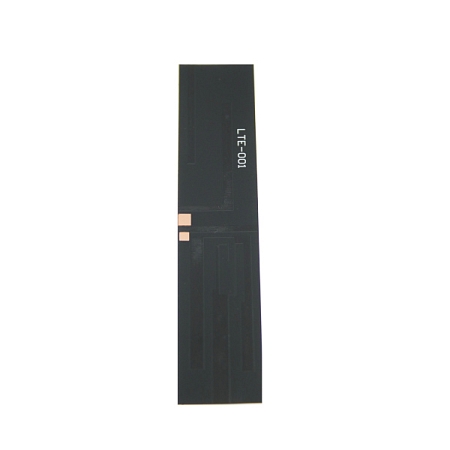

Antenna LTE Flexible 001, Adhesive, w/o cable

Product code: AO-ALTE-FPC001
Producer: SECTRON

Antenna LTE Flexible 001, Adhesive, w/o cable

Directional adhesive is antenna suitable as receiver/transmitter of signal in LTE. The antenna operates in bands 800/900/1800/1900/2100/2700 MHz.

5.22incl. VAT (21%) / pc

excl. VAT 4.31 € / pc

In stock
i
- +
Add to compare

If the customer is not registered for VAT, the rate according to his country of residence will be added.

Detailed description

Directional adhesive LTE antenna

Directional adhesive is antenna with a gain of 3 dBi suitable as receiver/transmitter of signal in LTE. The antenna operates in bands 800/900/1800/1900/2100/2700 MHz. It is suited for modems, routers, data moduls. The antenna includes double-sided 3M tape, which ensures easy installation of the antenna.

The antenna does not include a cable or connector. You can freely choose these components.

Technical parameters can be found in the attached datasheet.

Parameters

Impedance 50  Ohm Maximum input power 10  W
Polarization Linear Execuion Internal
Operating temperature -30 ~ +90  °C Dimensions 96 x 21  mm
Directivity Directional Technology LTE
Weight 0.63  g Gain 3  dBi
VSWR <2.0:1 Radiation angle H 360 V 30
Type of attachment Adhesive

5.22incl. VAT (21%) / pc

excl. VAT 4.31 € / pc
