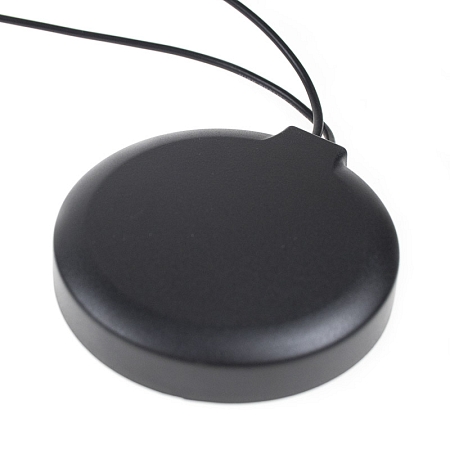

Antenna LTE/GNSS Magnet Mount 305L, 2x FAKRA, RG174/0.5m

Item code: AO-AKOM-B305LFF05 /Manufacturer: SECTRON

ao-akom-b305lff-3 ao-akom-b305lff-2 ao-akom-b305lff-1 ao-akom-b305lff-4

25.88 EUR Without VAT

On request When do I get the item?

If the customer is not registered for VAT, the rate according to his country of residence will be added.
guarantee 24 months
Name and surname*
By submitting the form, you agree to the privacy policy.
Your name and surname*
Send e-mail*
By submitting the form, you agree to the privacy policy.


Combination antenna LTE/GNSS

Combination omnidirectional antenna, designed for signal reception in LTE/GNSS. technologies. The antenna operates in bands 900/1800/1900/2100/1575.42 MHz. In combination with an amplifier, this active antenna achieves a gain of up to 28 dBi in GPS band. Thanks to the built-in magnet, it is suitable for placement on any metal surface, eg on the roof of a vehicle. The antenna is supplied with two 0.5 m cables with two FAKRA connectors.

Connector specifications FAKRA:

FAKRA connectors in a plastic housing. These housings are available in 14 different colors for easy identification. The characteristic impedance of the connector is 50 Ohm, working frequency ranges up to 6 GHz, working temperature is from -40 °C to 105 °C. FAKRA connectors are most often used in the automotive industry, for example for connecting antennas, radios, navigation. They are also widely used in M2M and IoT devices. Connecting and disconnecting FAKRA connectors is easy, we guarantee up to 500 cycles.

Cable specifications RG174/U:

The cable labeled RG174 / U is a basic variant of a coaxial cable that is compatible with connectors applicable to a cable diameter of 2.8 mm. The characteristic impedance of the cable is 50 Ω. The reduction factor is fixed at 0.66. The operating temperature range is -20 to 80 °C.
It is most often used for creating cable adaptors with connectors such as BNC / FAKRA / FME / MCX / MMCX / N / SMA / SMB / SMP / TNC and others. It is ideal for short and bending stressed connections in measuring and telecommunications technology, for GPS / GSM / WLAN antennas, antenna leads etc.

Technical parameters can be found in the attached datasheet.


impendance: 50 Ohm Cable: RG174/U
Connector: FAKRA Z(f) / FAKRA C(f) Maximum input power: 10 W max.
Input voltage: 2.2 V - 5 V DC Polarization: Linear / R.H.C.P.
Execution: External Operational temperature: -30 °C - +90 °C
Dimensions: 81.6 x 14.5 mm Directivity: Omni-directional
Width zone: 5 MHz Technology : LTE / GNSS
Weight: 148.28 g VSWR: <2.0:1
Radiation angle: H 360° V 30° GAIN: 5 dBi
