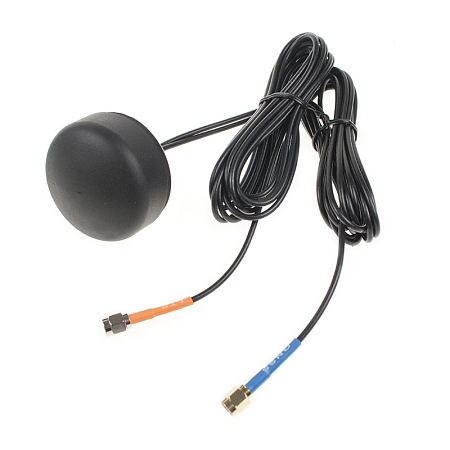

Antenna LTE/GNSS Screw Mount R36, 2x SMA(m), 2x RG174U/0.5m

News
Product code: AO-AKOM-36XSS05
Producer: SECTRON

Antenna LTE/GNSS Screw Mount R36, 2x SMA(m), 2x RG174U/0.5m

Omnidirectional, combined, outdoor antenna is suitable for GSM/UMTS/LTE and GPS/GLONASS signal receival. The antenna functions in the bands of 800/900/1700/1800/2100/2400/2600/1575.42/1602 MHz.

26.35incl. VAT (21%) / pc

excl. VAT 21.78 € / pc

Temporarily unavailable
i
Temporarily unavailable Add to compare

If the customer is not registered for VAT, the rate according to his country of residence will be added.

Detailed description

Omnidirectional, combined, outdoor antenna suitable for GSM/UMTS/LTE and GPS/GLONASS

Omnidirectional, combined, outdoor antenna is suitable for GSM/UMTS/LTE and GPS/GLONASS signal receival. The antenna functions in the bands of 800/900/1700/1800/2100/2400/2600/1575.42/1602 MHz. In combination with amplifier its gain is around 30 dBi. Thanks to IP67, this antenna is suitable for outdoor use. The antenna is supplied with two 0,5 m RG174/U cables and with two SMA (m) connectors.

Connector specifications SMA:

These are high-frequency connectors with screw connection mechanism. The characteristic impedance of the connector is 50 Ohm and the operating frequency range up to 18 GHz. There are two types of SMA connectors, namely SMA and RP-SMA. Most of the current cellular routers are equipped with SMA connectors for connecting Wi-Fi / 2G / 3G / LTE / GPS antennas terminated by proticates. It is also used as a standard connector in RF measuring technology. They are characterized by high reliability, durability, high mechanical stability and optimal electrical properties.

Cable specifications RG174/U:

The cable labeled RG174/U is a basic variant of a coaxial cable that is compatible with connectors applicable to a cable diameter of 2.8 mm. The characteristic impedance of the cable is 50 Ω. The reduction factor is fixed at 0.66. The most common cables of this type have a temperature range of -20 to 80 °C.
It is most often used for creating cable adaptors with connectors such as BNC / FAKRA / FME / MCX / MMCX / N / SMA / SMB / SMP / TNC and others. It is ideal for short and bending stressed connections in measuring and telecommunications technology, for GPS / GSM / WLAN antennas, antenna leads etc. There are also specially modified types of RG174/U cables for outdoor use, which are UV resistant, as well as for use in extreme conditions. There are made of different materials, different qualities.

Technical parameters can be found in the attached datasheet.

Parameters

Impedance 50  Ohm Cabel RG316/U
Connector SMA(m) Power voltage 3 V
Polarization Linear , R.H.C.P Execuion External
Operating temperature -30 ~ +90  °C Dimensions 54.4 x 28.7  mm
Directivity Omnidirectional Technology LTE , GPS , GLONASS
Weight 107.54  g Gain 7  dBi , 2  dBi
VSWR <2.0:1 LNA Gain 30  dB
Type of attachment Screw Mount Certification RoHS , ISO 14001 , ISO 9001
Ingress protection (IP) IP67

26.35incl. VAT (21%) / pc

excl. VAT 21.78 € / pc
