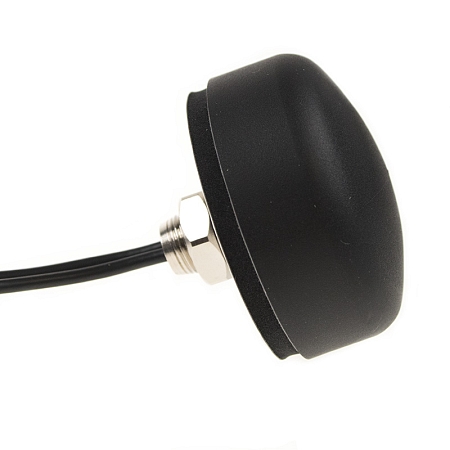

Antenna LTE/GPS Screw Mount PUCK, RG316/3m, open end

Product code: AO-AKOM-36O3 /Manufacturer: SECTRON

ao-akom-36o5-gps-anternna-03 ao-akom-36o5-gps-antenna-05 ao-akom-36o5-gps-antenna-04 ao-akom-36o5-gps-antenna-02 ao-akom-36o5-gps-antenna-01

17.38 EUR Without VAT

In stock When do I get the item?

guarantee 24 months
Subject*
Name and surname*
E-mail*
Inquiry*
By submitting the form, you agree to the privacy policy.
Your name and surname*
E-mail*
Send e-mail*
Message*
By submitting the form, you agree to the privacy policy.

Description

Omnidirectional antenna for LTE and GPS technologies

Omnidirectional antenna for LTE and GPS technologies. The antenna operates in frequency bands 800/900/1700/1900/2100/1575.42 MHz. It is suitable for use in cars and other means of transport. Here it is used for navigation and tracking systems, electronic books and other devices.
Thanks to its robust construction it has high resistance to damage, dust and water (IP67) and is suitable for outdoor installation.

The antenna is supplied with two 3 m RG316/U cables with an open end (optional connector possible).

Cable specifications RG316/U:

RG316 coaxial low-loss high-frequency cable that is compatible with connectors applicable to a cable with the outer diameter of 2.49 mm. The frequency range is 0 - 3 GHz. The RG316 cable is often used in radio frequency and telecommunication applications, for the transmission of high frequency signals, and also in wireless devices. It is suitable for applications that require good performance and stability in high temperature environments. The operating temperature of this cable is -55 to + 200 ° C. The shortening factor is set to 0.7.

More information can be found in the attached datasheet.

Parameters

Certifikace: RoHS / ISO9001 / ISO14001 impendance: 50 Ohm
Cable: RG361/U Connector: Volný konec
Material: PVC / TPR Maximum input power: 10 W max.
Polarization: Linear / R.H.C.P. Execution: External
Operational temperature: -30 °C - +90 °C Dimensions: 54.4 x 28.7 mm
Directivity: Omni-directional / Directional Technology : LTE / GPS
Weight: 152.84 g VSWR: <2.0:1
GAIN: 2 dBi / 27 dBi TYPE OF ATTACHMENT: Connector Mount
