Omnidirectional GSM/UMTS/LTE antenna

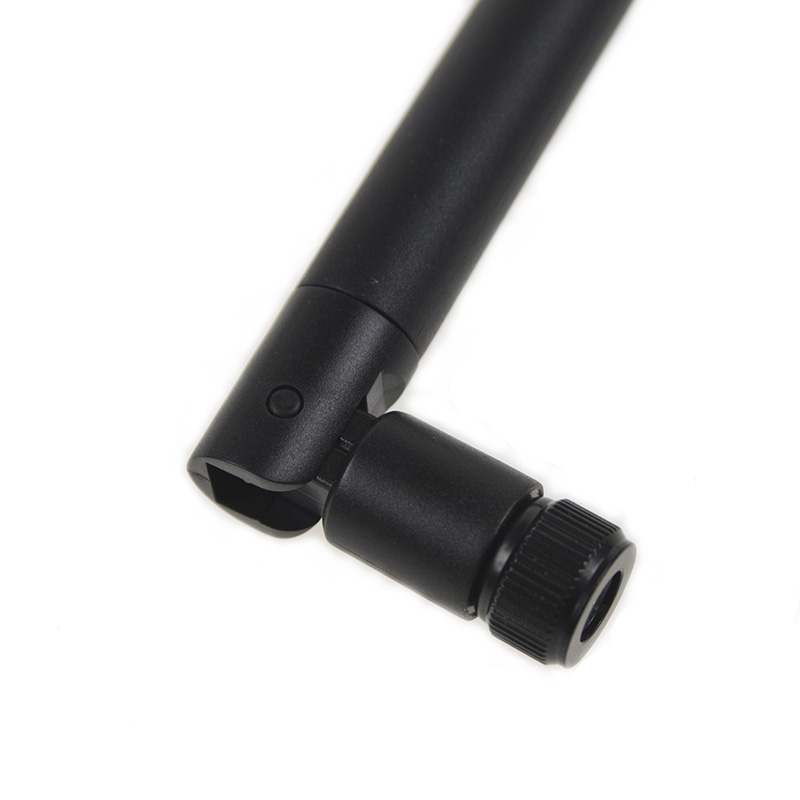

Omnidirectional magnetic antenna for GSM/UMTS/LTE technologies. The antenna operates in frequency bands 800/900/1800/2100/2600 MHz. The antenna is suited for modems/routers. It is supplied with 3 m cable RG58 with TS9 (m) connector.
Connector specifications TS9:
TS-9 is a little-known coaxial connector that is used primarily in devices such as broadband 3G, 4G modems. Female TS-9 contains a very simple round brass case with an outer diameter of 3.5 mm. The connector is usually connected to a printed circuit board. TS-9 Male connectors have an inner diameter of 3.5 mm and an outer diameter of 3.8 mm. The male connector is usually located on the connecting coaxial cables, sometimes also on external antennas. The connector should not be confused with a similarly sized but incompatible CRC-9 connector. The CRC-9 and TS-9 connectors are visually similar, but not compatible with each other.
Cable specifications RG174/U:
The cable labeled RG174/U is a much cheaper variant of a coaxial cable that is compatible with connectors applicable to a cable diameter of 2.8 mm. It is mainly used for the frequency range 0 - 1 GHz, it can also be used for higher frequencies, but at the cost of higher attenuation – see the attached attenuation table below. The characteristic impedance of the cable is 50 Ω. The reduction factor is fixed at 0.66. The operating temperature range is -20 to 80 ° C.
It is most often used for creating cable adaptors with connectors such as BNC/FAKRA/FME/MCX/MMCX/N/SMA/SMB/SMP/TNC and others. It is ideal for short and bending stressed connections in measuring and telecommunications technology, for GPS / GSM / WLAN antennas, antenna leads etc.
Technical parameters can be found in the attached datasheet.
