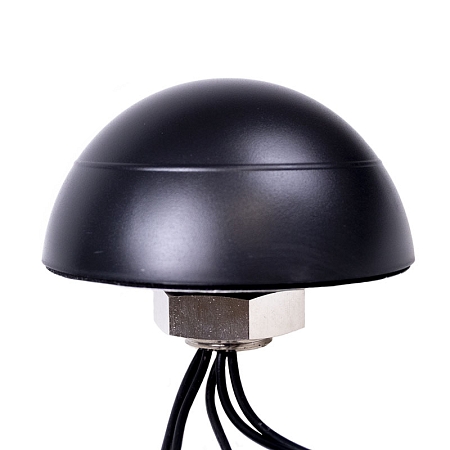

Omnidirectional antenna for GSM/UMTS/LTE /Wi-Fi/GPS
Combined mounting MIMO antenna designed for GSM/UMTS/LTE /Wi-Fi/GPS technologies. The antenna operates in bands 700/800/900/1700/1800/2100/2600 MHz 2,4/5 GHz 1574.42/1602 MHz. Using the so-called MIMO technology (Multiple Input, Multiple Output) and suitable positioning of the antennas, the resulting system achieves higher transmission rates. The antenna can be used in M2M as well as in IoT devices and systems. The IP67 degree of protection makes it suitable for outdoor use. The antenna system is supplied with five 3 m RG174/U cables with SMA (m) connectors.
Cable specifications RG174/U:
The cable labelled RG174/U is a basic variant of a coaxial cable that is compatible with connectors applicable to a cable diameter of 2.8 mm. The characteristic impedance of the cable is 50 Ω. The reduction factor is fixed at 0.66. The most common cables of this type have a temperature range of -20 to 80 °C.
It is most often used for creating cable adaptors with connectors such as BNC/FAKRA/FME/MCX/MMCX/N/SMA/SMB/SMP/TNC and others. It is ideal for short and bending stressed connections in measuring and telecommunications technology, for GPS/GSM/WLAN antennas, antenna leads etc. There are also specially modified types of RG174/U cables for outdoor use, which are UV resistant, as well as for use in extreme conditions. There are made of different materials, different qualities.
Connector specifications SMA:
These are high-frequency connectors with screw connection mechanism. The characteristic impedance of the connector is 50 Ohm and the operating frequency range up to 18 GHz. There are two types of SMA connectors, namely SMA and RP-SMA. Most of the current cellular routers are equipped with SMA connectors for connecting Wi-Fi/2G/3G/LTE/GPS antennas terminated by proticates. It is also used as a standard connector in RF measuring technology. They are characterized by high reliability, durability, high mechanical stability and optimal electrical properties
Technical parameters can be found in the attached datasheet.
