Product code: AO-AKOM-E316LMS
Producer: SECTRON

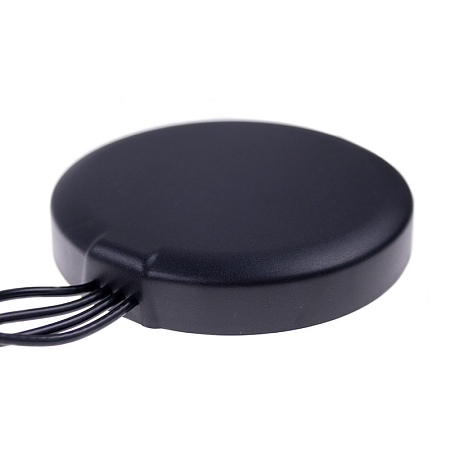

Antenna LTE MIMO/WiFi Adhesive E316LM, 2.5 dBi, 2x SMA(m), 2x RP-SMA(f), 4x RG174/3m

Product code: AO-AKOM-E316LMS
Producer: SECTRON

Antenna LTE MIMO/WiFi Adhesive E316LM, 2.5 dBi, 2x SMA(m), 2x RP-SMA(f), 4x RG174/3m

The combined WiFi, GNSS and LTE MIMO antenna is designed for receiving and transmitting signals in GNSS/LTE/WIFI technologies. The antenna operates in bands 698‐960/1561‐1602/1710‐2690/2400‐2483.5/4900‐5825 MHz.

40.26incl. VAT (21%) / pc

excl. VAT 33.27 € / pc

In stock
i
- +
Add to compare

If the customer is not registered for VAT, the rate according to his country of residence will be added.

Detailed description

Combined WiFi, GNSS and LTE MIMO antenna

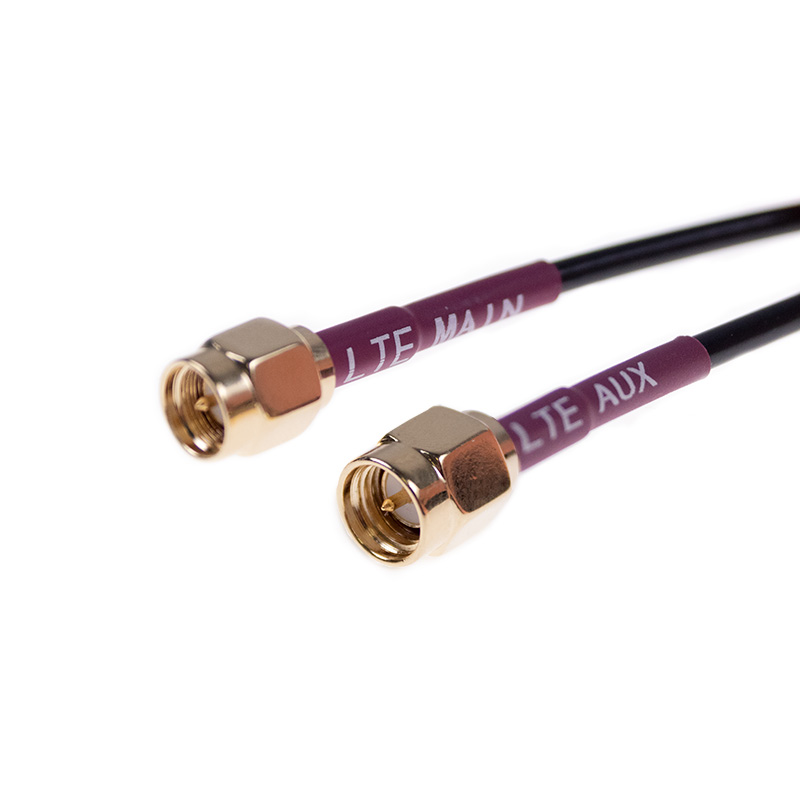

The combined WiFi, GNSS and LTE MIMO antenna is designed for receiving and transmitting signals in GNSS/LTE/WIFI technologies. The antenna reaches up to 28 dB gain when combined with an amplifier. The antenna operates in bands 698‐960/1561‐1602/1710‐2690/2400‐2483.5/4900‐5825 MHz. When MIMO technology is used, the resulting system achieves higher transmission rates, an increase in the signal level and thus better Internet speed. The antenna can be used in the field of M2M and IoT for connection with cellular modems and routers, as well as, for example, in public transport for GPS localization, communication with the dispatch centre and mediation of Wi-Fi connection for passengers. The antenna is supplied with four 3m RG174 cables terminated with two SMA(m) connectors and two RP-SMA(f) connectors. Thanks to the high degree of protection IP67, it is also suitable for outdoor installation.

Cable specifications RG174/U:

The cable labelled RG174/U is a much cheaper variant of a coaxial cable that is compatible with connectors applicable to a cable diameter of 2.8 mm. It is mainly used for the frequency range 0 - 1 GHz, it can also be used for higher frequencies, but at the cost of higher attenuation – see the attached attenuation table below. The characteristic impedance of the cable is 50 Ω. The reduction factor is fixed at 0.66. The operating temperature range is -20 to 80 ° C.
It is most often used for creating cable adaptors with connectors such as BNC/FAKRA/FME/MCX/MMCX/N/SMA/SMB/SMP/TNC and others. It is ideal for short and bending stressed connections in measuring and telecommunications technology, for GPS/GSM/WLAN antennas, antenna leads etc.

Connector specifications SMA:

These are high-frequency connectors with screw connection mechanism. The characteristic impedance of the connector is 50 Ohm and the operating frequency range up to 18 GHz. There are two types of SMA connectors, namely SMA and RP-SMA. Most of the current cellular routers are equipped with SMA connectors for connecting Wi-Fi/2G/3G/LTE/GPS antennas terminated by proticates. It is also used as a standard connector in RF measuring technology. They are characterized by high reliability, durability, high mechanical stability and optimal electrical properties

Technical parameters can be found in the attached datasheet.

Parameters

Impedance 50  Ohm Cabel RG174/U
Connector SMA(m) , RP-SMA(f) Maximum input power 10  W
Power voltage 3 – 5 V DC Polarization Linear , R.H.C.P
Execuion External Operating temperature -40 ~ +85  °C
Dimensions 110 x 18  mm Directivity Omnidirectional
Technology LTE , GNSS , WIFI Weight 268.63  g
Gain 2.5  dBi VSWR <1.5:1
LNA Gain 28  dB Type of attachment Adhesive
Certification RoHS Ingress protection (IP) IP67
Material ABS
