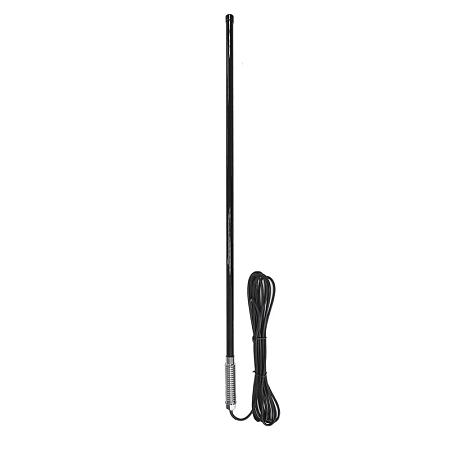

Antenna LTE OMNI OM57, 800-2700 MHz, 7 dBi, SMA(m), RG195/5m

Product code: AO-ALTE-OM57 /Manufacturer: SECTRON

ao-alte-om57-lte-antena-01 ao-alte-om57-lte-antena-03 ao-alte-om57-lte-antena-04 ao-alte-om57-lte-antena-02

42.82 EUR Without VAT

In stock When do I get the item?

guarantee 24 months
Subject*
Name and surname*
E-mail*
Inquiry*
By submitting the form, you agree to the privacy policy.
Your name and surname*
E-mail*
Send e-mail*
Message*
By submitting the form, you agree to the privacy policy.

Description

Omnidirectional LTE/UMTS/GSM OMNI antenna

Omnidirectional antenna for GSM/UMTS/LTE technologies. The antenna operates in frequency bands 700/800/850/900/1700/1800/1900/2100/2300/2500/2600 MHz. Thanks to its precise construction, this antenna has an excellent weather resistance which makes it suitable for outdoor installations. A cable with a length of 5 m is attached to the antenna, which is terminated with SMA (m) connector.

The package contains a holder that ensures a firm and stable attachment of the antenna.

Connector specifications SMA:

These are high-frequency connectors with screw connection mechanism. The characteristic impedance of the connector is 50 Ohm and the operating frequency range up to 18 GHz. There are two types of SMA connectors, namely SMA and RP-SMA. The connection and disconnection of the connectors is guaranteed for up to 500 cycles. Temperature range is -65 °C to +165 °C. Most of the current cellular routers are equipped with SMA connectors for connecting Wi-Fi / 2G / 3G / LTE / GPS antennas terminated by proticates. It is also used as a standard connector in RF measuring technology. They are characterized by high reliability, durability, high mechanical stability and optimal electrical properties.

Cable specifications RG195:

The RG195 coaxial cable is compatible with connectors applicable to cables with 4.95 mm outer diameter. It is mainly used for the frequency range 0-6 GHz. The characteristic impedance is 50 Ω. The most common cables of this type have a temperature range of -40 °C to + 85 °C. The shortening factor is set at 0.79. The RG195 cable is used in metrology, wireless communications, the automotive industry and also for VHF and UHF applications. It is also often used for creating cable adaptors with plug connectors such as BNC / N / SMA / TNC. There are also specially modified types of RG195 cables for outdoor use, which are UV resistant, as well as for use in extreme conditions. There are made of different materials, different qualities.

Technical parameters can be found in the attached datasheet.

Parameters

impendance: 50 Ohm Cable: RG195/U
Connector: SMA(m) Maximum input power: 10 W max.
Polarization: Linear Execution: External
Operational temperature: -20 °C - +60 °C Dimensions: 855 x 46.9 mm
Directivity: Omni-directional Technology : LTE / UMTS / GSM
Weight: 750 g VSWR: <2.0:1
Radiation angle: H 360° V 30° GAIN: 7 dBi
TYPE OF ATTACHMENT: Screw Mount
