LTE antenna

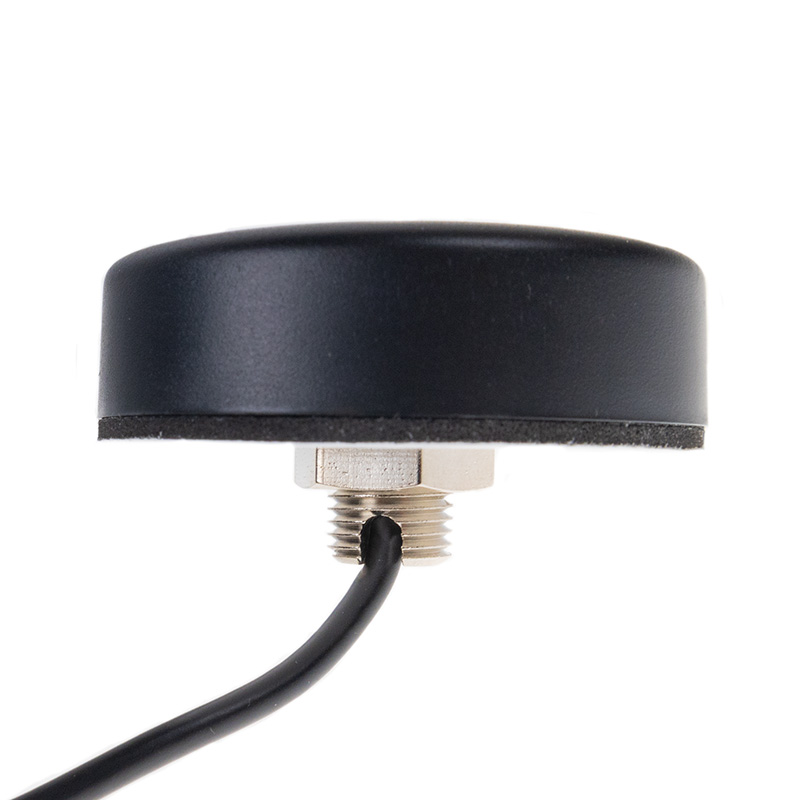

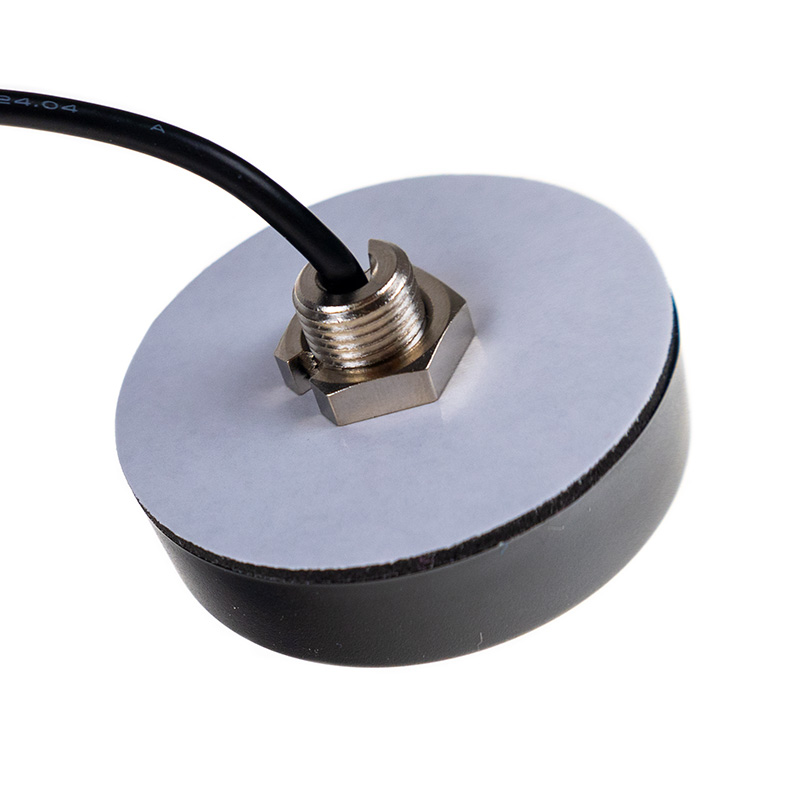

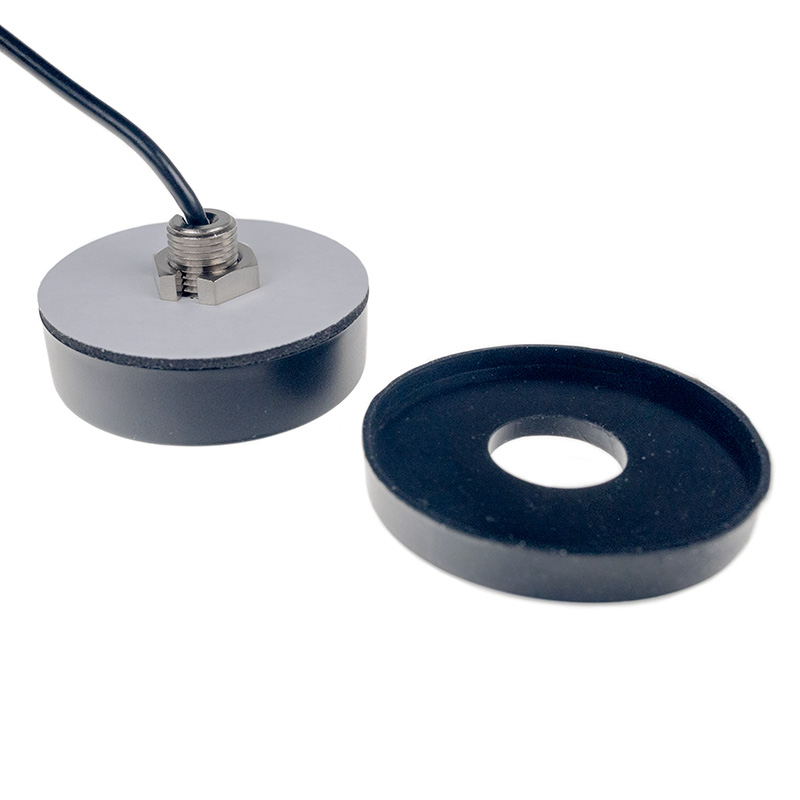

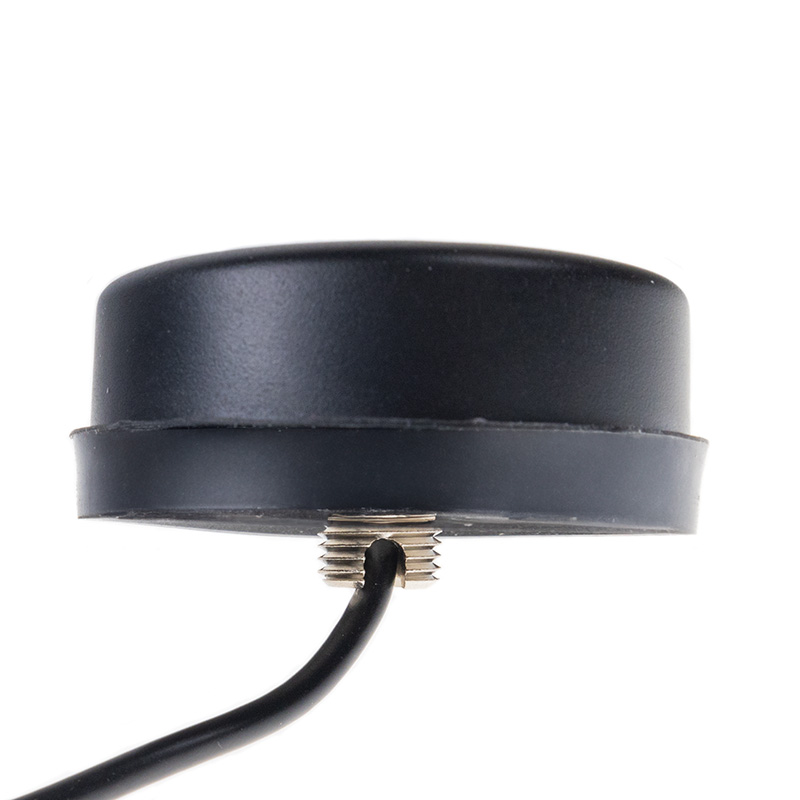

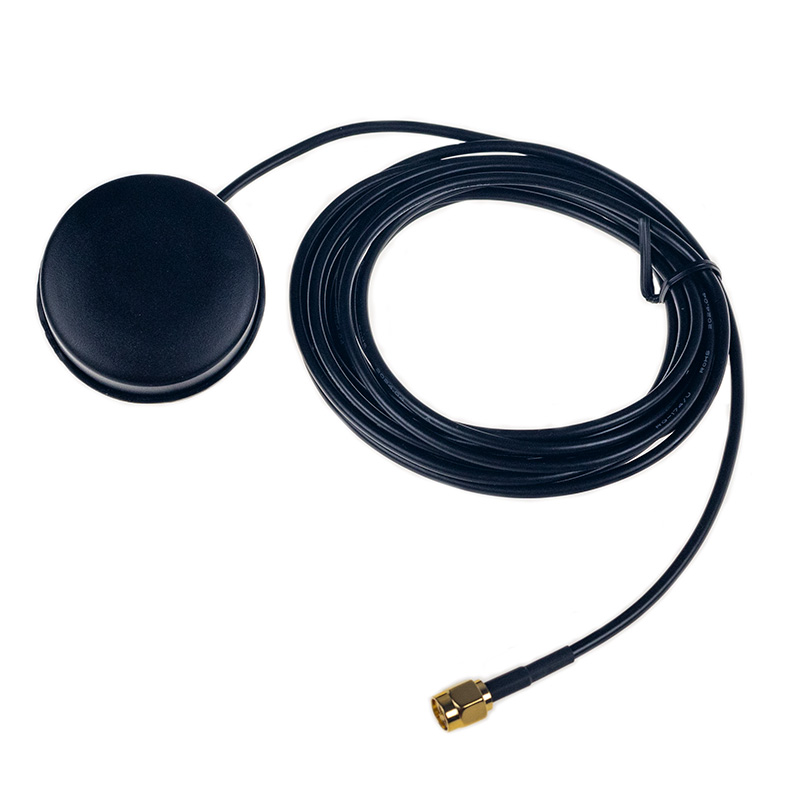

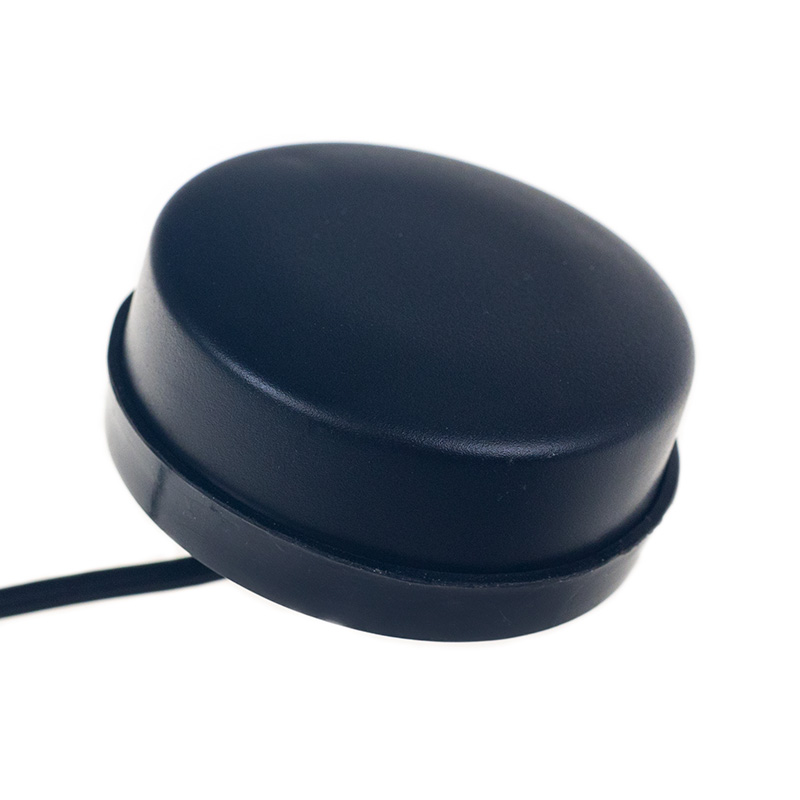

Omnidirectional LTE antenna operates with a gain of 2.5 dBi in the frequency band of 698~960MHz/1710~2690MHz. This type of antenna can be used for various applications such as routers, modems, or security systems, where it provides a stable internet connection. Thanks to its IP67 protection rating, it is also suitable for outdoor installation. The LTE antenna has a 3-meter RG174/U cable, which is terminated with an SMA (m) connector.
Cable specifications RG174/U
The cable labeled RG174 / U is a basic variant of a coaxial cable that is compatible with connectors applicable to a cable diameter of 2.8 mm. The characteristic impedance of the cable is 50 Ω. The reduction factor is fixed at 0.66. The operating temperature range is -20 to 80 °C.
It is most often used for creating cable adaptors with connectors such as BNC / FAKRA / FME / MCX / MMCX / N / SMA / SMB / SMP / TNC and others. It is ideal for short and bending stressed connections in measuring and telecommunications technology, for GPS / GSM / WLAN antennas, antenna leads etc.
Connector specifications SMA
These are high-frequency connectors with screw connection mechanism. The characteristic impedance of the connector is 50 Ohm and the operating frequency range up to 18 GHz. There are two types of SMA connectors, namely SMA and RP-SMA. Most of the current cellular routers are equipped with SMA connectors for connecting Wi-Fi /2G/3G/LTE/GPS antennas terminated by proticates. It is also used as a standard connector in RF measuring technology.
Technical parameters can be found in the attached datasheet.
