Product code: AO-ALTE-PA02
Producer: SECTRON

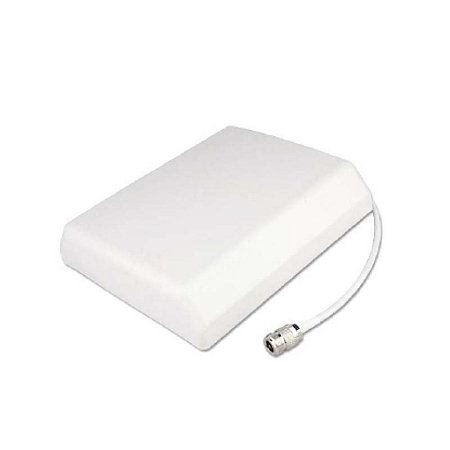

Antenna LTE Wall/Pole Mount, 7 dBi, N(f), RG58/3m, White

Product code: AO-ALTE-PA02
Producer: SECTRON

Antenna LTE Wall/Pole Mount, 7 dBi, N(f), RG58/3m, White

A directional 4G antenna is designed to receive the signals from GSM/UMTS/LTE technologies. Works in the 800/900/1700/1800/1900/2100/2400/2500/2600/2700 MHz.

73.81incl. VAT (21%) / pc

excl. VAT 61.00 € / pc

Temporarily unavailable
i
Temporarily unavailable Add to compare

If the customer is not registered for VAT, the rate according to his country of residence will be added.

Detailed description

Directional LTE antenna

A directional 4G antenna is designed to receive the signals from GSM/UMTS/LTE technologies. Works in the 800/900/1700/1800/1900/2100/2400/2500/2600/2700 MHz band. A cable RG58/U with a length of 3 m is attached to the antenna, which is terminated with N (f) connector. It allows connection to, for example, modems, routers and terminals that are equipped with N (m) connectors. The antenna in a durable plastic housing is also suitable for outdoor use. Wall or pole mounting.

Connector specifications N:

Connectors with a screw-thread mechanism. N connectors are characterized by high reliability and mechanical stability. The characteristic impedance of the connector is 50 Ohm and the working frequency ranges up to 11 GHz. Temperature range is -65 °C to +165 °C. N connectors are used, for example, to connect wireless WLAN devices, satellite systems and GSM / GPS / Wi-Fi antennas.

Cable specifications RG58:

The RG58 coaxial cable is compatible with connectors applicable to a 5 mm cable diameter. It is mainly used for the 0-1 GHz frequency range, it can also be used for higher frequencies, but at the cost of higher attenuation. The characteristic impedance of the cable is 50 Ω. The reduction factor is fixed at 0.66. The most common cables of this type have a temperature range of -20 to 75 ° C. This cable is suitable for external WiFi / GPS / GSM antennas. It is also often used for creating cable adaptors with connectors such as BNC / FAKRA / FME / N / SMA / TNC and others. There are also specially modified types of RG58 cables for outdoor use, which are UV resistant, as well as for use in extreme conditions. There are made of different materials, different qualities.

More information can be found in the attached datasheet.

Parameters

Impedance 50  Ohm Cabel RG58/U
Connector N(f) Maximum input power 50  W
Polarization Linear Execuion External
Operating temperature -20 ~ +60  °C Dimensions 207 x 178 x 51.3  mm
Directivity Directional Technology LTE
Weight 570  g Gain 7  dBi
VSWR <1.6:1 Type of attachment Screw Mount

73.81incl. VAT (21%) / pc

excl. VAT 61.00 € / pc
