Product code: AO-ALTE-YASS
Producer: SECTRON

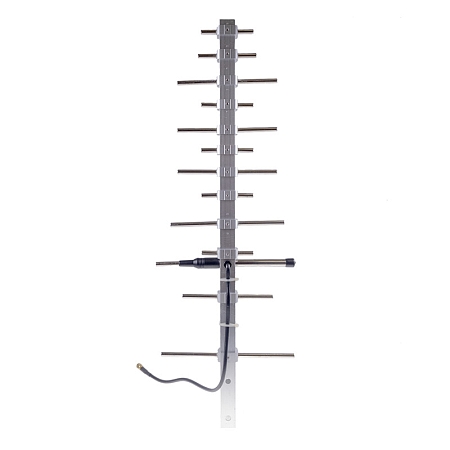

Antenna LTE YAGI 140, 14 dBi, SMA(m), RG58/28cm

Product code: AO-ALTE-YASS
Producer: SECTRON

Antenna LTE YAGI 140, 14 dBi, SMA(m), RG58/28cm

Directional outdoor antenna for GSM/UMTS/LTE technologies. The antenna operates in frequency bands 700/800/900/1700/1800/1900/2100/2500/2600/2700 MHz.

95.58incl. VAT (21%) / pc

excl. VAT 78.99 € / pc

In stock
i
- +
Add to compare

If the customer is not registered for VAT, the rate according to his country of residence will be added.

Detailed description

Directional LTE antenna YAGI 140

Directional antenna for GSM/UMTS/LTE technologies. The antenna operates in frequency bands 700/800/900/1700/1800/1900/2100/2500/2600/2700 MHz. The antenna is characterized by a high 14 dBi gain and robust construction, which ensures high weather and dust resistance. The antenna is suitable for outdoor mounting. The antenna is a 28cm cable extension with SMA (m) connector.

The package contains a holder that ensures a firm and stable attachment of the antenna.

Connector specifications SMA:

These are high-frequency connectors with screw connection mechanism. The characteristic impedance of the connector is 50 Ohm and the operating frequency range up to 18 GHz. There are two types of SMA connectors, namely SMA and RP-SMA. Most of the current cellular routers are equipped with SMA connectors for connecting Wi-Fi / 2G / 3G / LTE / GPS antennas terminated by proticates. It is also used as a standard connector in RF measuring technology. They are characterized by high reliability, durability, high mechanical stability and optimal electrical properties.

Cable specifications RG58:

The RG58 coaxial cable is compatible with connectors applicable to a 5 mm cable diameter. It is mainly used for the 0-1 GHz frequency range, it can also be used for higher frequencies, but at the cost of higher attenuation. The characteristic impedance of the cable is 50 Ω. The reduction factor is fixed at 0.66. The operating temperature range is -20 to 75 ° C. This cable is suitable for external WiFi / GPS / GSM antennas. It is also often used for creating cable adaptors with connectors such as BNC / FAKRA / FME / N / SMA / TNC and others.

Technical parameters can be found in the attached datasheet.

Parameters

Impedance 50  Ohm Cabel RG58/U
Connector SMA(m) Maximum input power 10  W
Polarization Linear Execuion External
Operating temperature -30 ~ +60  °C Dimensions 540 x 180 x 26.6  mm
Directivity Directional Technology LTE , GSM , UMTS
Weight 569  g Gain 14  dBi
VSWR <3.5:1 Radiation angle H 30 V 30
Type of attachment Screw Mount
