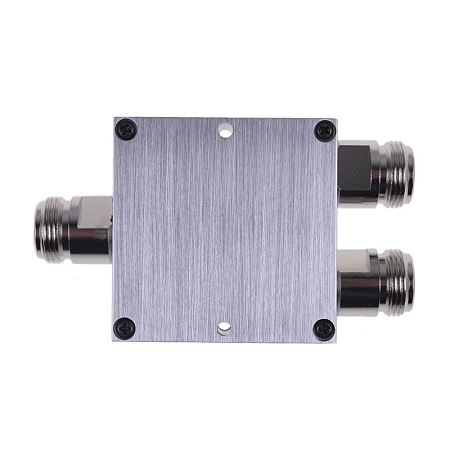

Antenna Splitter Coupler 800-2500MHz 2/1

Product code: XGSM-ROZBOC /Manufacturer: SECTRON

24.95 EUR Without VAT

In stock When do I get the item?

Price from 10 pieces 20.03 EUR

Price from 100 pieces 17.99 EUR

guarantee 24 months
Subject*
Name and surname*
E-mail*
Inquiry*
By submitting the form, you agree to the privacy policy.
Your name and surname*
E-mail*
Send e-mail*
Message*
By submitting the form, you agree to the privacy policy.

Description

Splitter Coupler (800-2500 MHz) with 2 outputs

The broadband splitter with two outputs is equipped with two N (f) type connectors. Suitable for branching from one coaxial branch into two coaxial branches and thus allowing the connection of multiple devices.


Features:

• Frequency: 800 - 2500 MHz
• VSWR: 1.35 : 1 (max)
• Impedance: 50 Ohm
• Divider Factor: 1 : 2
• Divider Loss: 3 dB
• Temperature range: -40 °C až +90°C
• Dimensions: 20 × 58 × 98 mm
• Low Insertion Loss

Specifications connector N:

A connectors with a screw-thread mechanism. N connectors are characterized by high reliability and mechanical stability. The characteristic impedance of the connector is 50 Ohm and the working frequency ranges up to 11 GHz. N connectors are used, for example, to connect wireless WLAN devices, satellite systems and GSM / GPS / Wi-Fi antennas.

Technical parameters can be found in the attached datasheet.

Parameters

Frequency range: 800-2500 MHz Impedance: 50 Ohm
Dimensions: 20x58x98 mm V.S.W.R.: 1.35:1 (max)
Hub lost: 3.0 i
