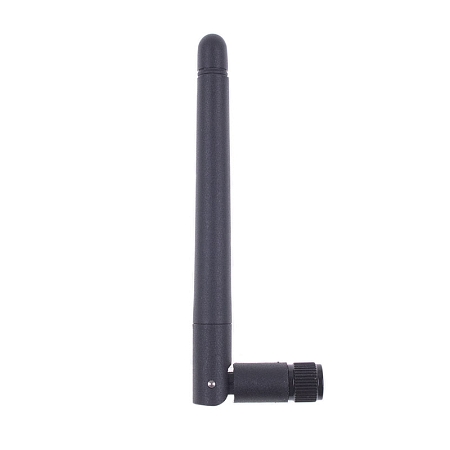

Antenna UMTS/GSM 015, Connector Mount 90°/180°, 3 dBi, SMA(m)

Item code: AO-AUMTS-G015KZWS /Manufacturer: SECTRON

ao-aumts-g015kzws-gsm-antenna-02 ao-aumts-g015kzws-gsm-antenna-03 ao-aumts-g015kzws-gsm-antenna-04 ao-aumts-g015kzws-gsm-antenna-01

3.70 EUR Without VAT

In stock When do I get the item?

If the customer is not registered for VAT, the rate according to his country of residence will be added.
guarantee 24 months
Subject*
Name and surname*
E-mail*
Inquiry*
By submitting the form, you agree to the privacy policy.
Your name and surname*
E-mail*
Send e-mail*
Message*
By submitting the form, you agree to the privacy policy.

Description

Antenna GSM/UMTS Connector Mount

The omnidirectional antenna with SMA connector is suitable for receiving / transmitting GSM and UMTS signals. The GSM antenna operates in the 800/900/1800/1900 MHz bands. The antenna is suitable for connection to modems and routers.

Connector specifications SMA:

These are high-frequency connectors with screw connection mechanism. The characteristic impedance of the connector is 50 Ohm and the operating frequency range up to 18 GHz. There are two types of SMA connectors, namely SMA and RP-SMA. Most of the current cellular routers are equipped with SMA connectors for connecting Wi-Fi/2G/3G/LTE/GPS antennas terminated by proticates. It is also used as a standard connector in RF measuring technology. They are characterized by high reliability, durability, high mechanical stability and optimal electrical properties.


More information can be found in the attached datasheet.

Parameters

impendance: 50 Ohm Cable: N/A
Connector: SMA(m) Maximum input power: 10 W max.
Polarization: Linear Execution: External
Operational temperature: -40 °C - +85 °C Dimensions: 94.2 x 33.2 x 10 mm / 117 x 10 mm
Directivity: Omni-directional Technology : GSM
Weight: 11.31 g VSWR: <2.5:1
Radiation angle: H 360° V 30° GAIN: 3 dBi
TYPE OF ATTACHMENT: Connector mount
