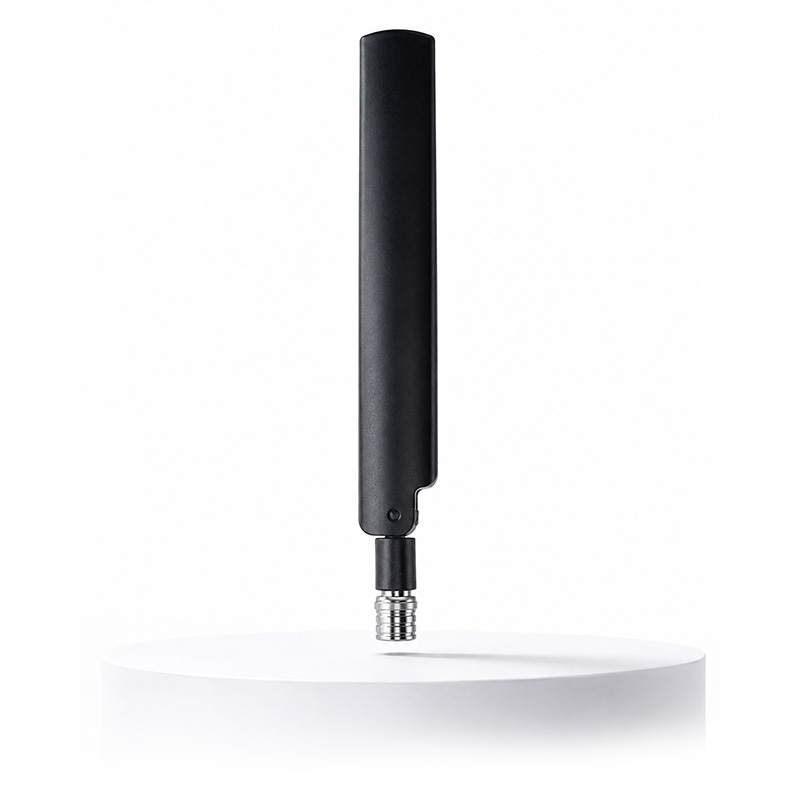

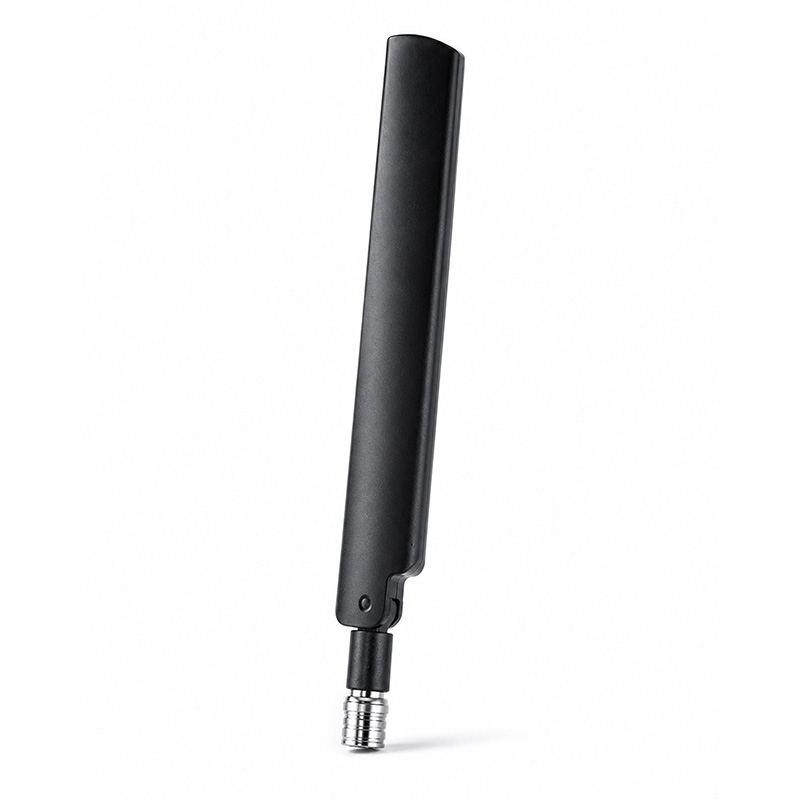

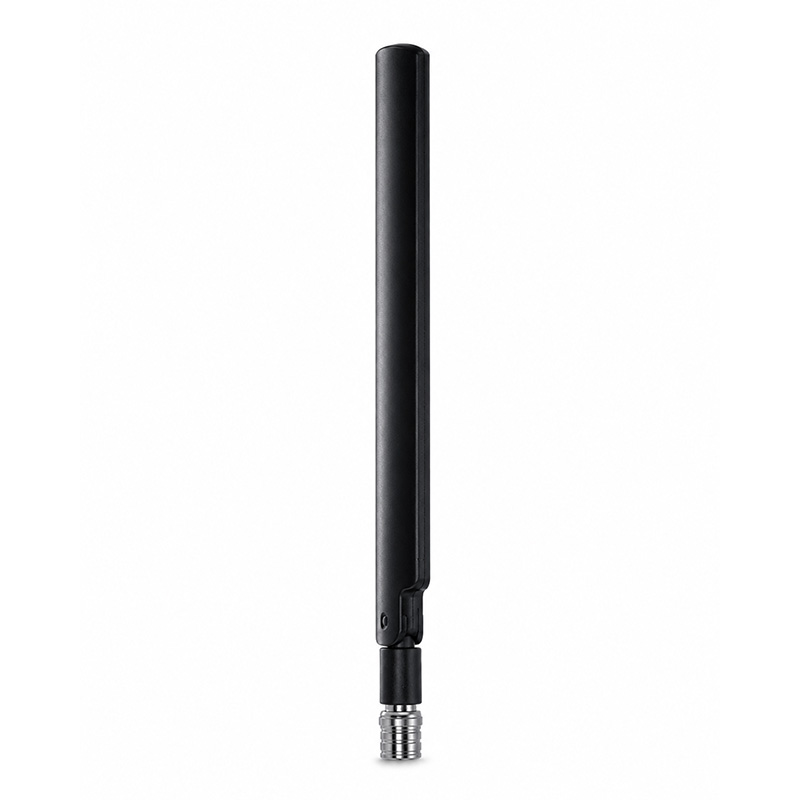

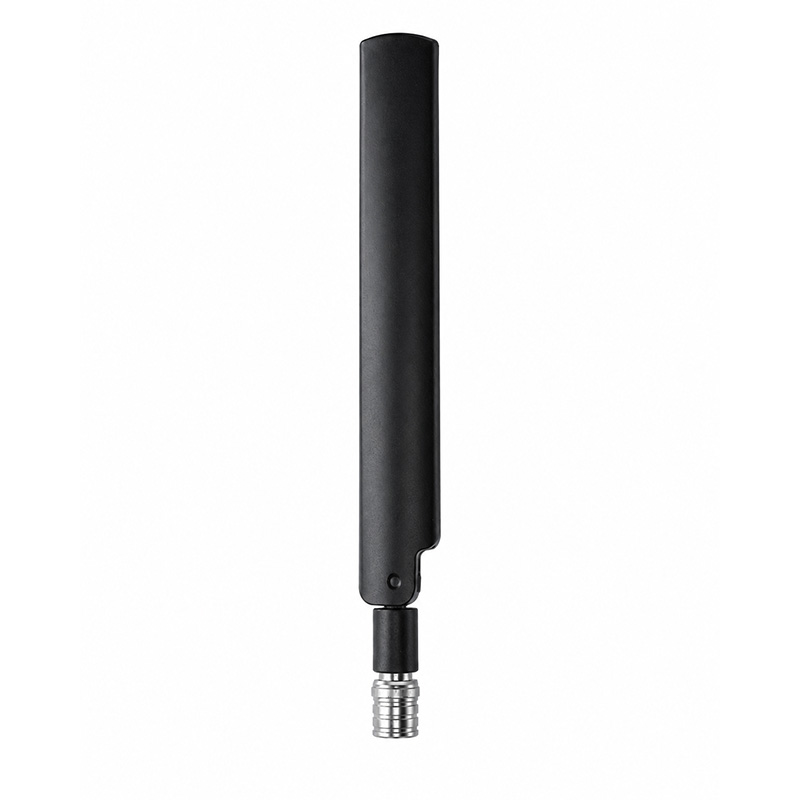

Omnidirectional Wi-Fi 6 Antenna FLAT 979L
The FLAT 979L omnidirectional antenna is designed for cutting-edge wireless networks. Thanks to full support for the Wi-Fi 6E standard, it reliably covers not only the classic 2.4 GHz and 5 GHz bands but also the latest 6 GHz band (up to 7.1 GHz). At these higher frequencies, it achieves a maximum gain of up to 6.3 dBi, ensuring maximum transfer speed, minimal latency, and a stable connection without interference, even in the most congested areas.

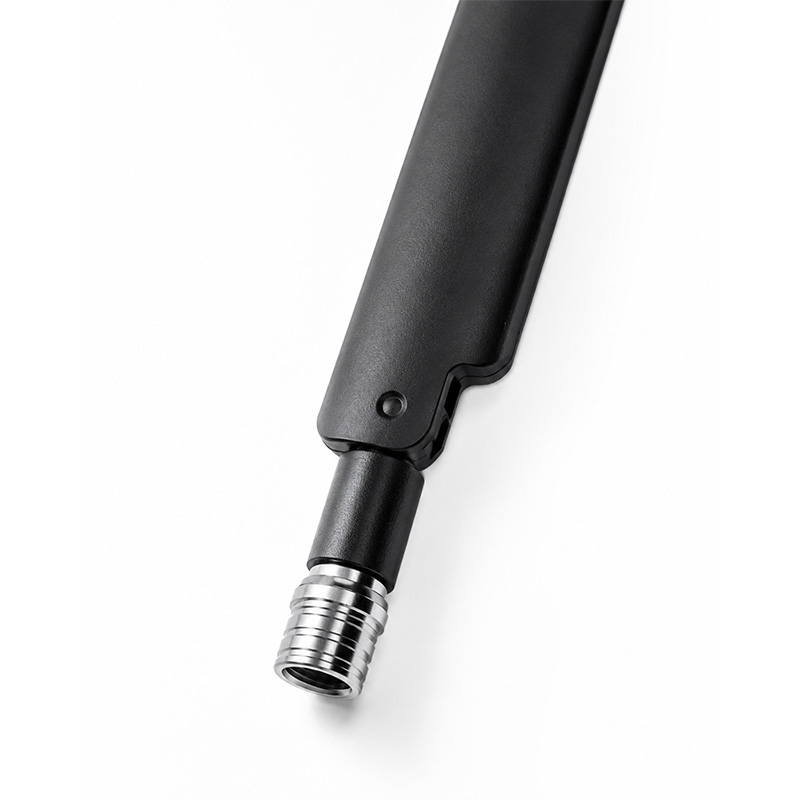

The antenna is equipped with a practical hinge that allows for easy positioning (straight or bent at a 90° angle), which significantly simplifies installation in any space. It connects to the device using a modern quick-lock QMA Male connector. In addition, its durable black ABS plastic construction guarantees a long lifespan and an elegant appearance.
The FLAT 979L omnidirectional antenna offers a wide range of applications, primarily in industrial, commercial, and technologically demanding environments.
QMA Connector Specifications:

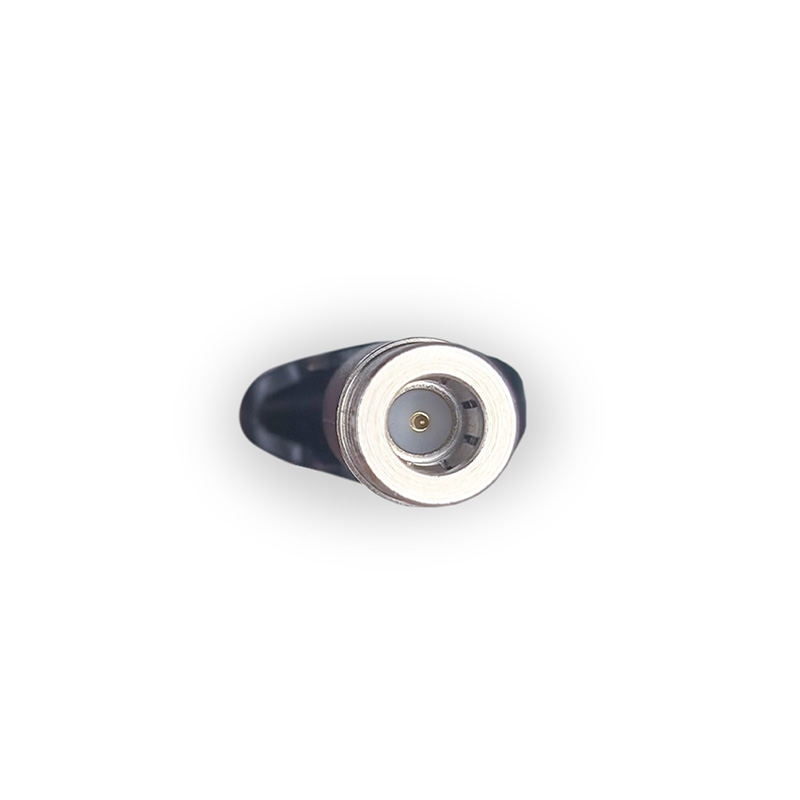

QMA connectors represent a modern alternative to the SMA interface. Thanks to their quick-lock mechanism, they offer up to 10 times faster connection while maintaining excellent electrical properties. The connector operates with an impedance of 50 Ω in a frequency band of up to 18 GHz and functions reliably in extreme temperatures ranging from -40 °C to +85 °C. It is characterized by high mechanical stability, a guaranteed service life of 100 mating cycles, and widespread application in RF measurement technology.
Technical parameters can be found in the attached datasheet.
