Product code: AW-A2458G-S2SRP
Producer: SECTRON

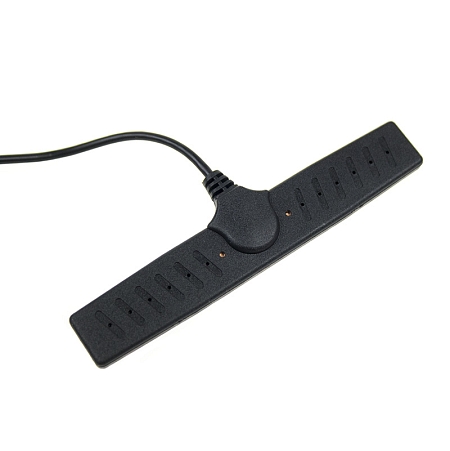

Antenna WiFi Adhesive U25, 2.4/5 GHz, 5 dBi, SMA-RP(pin f), RG174/3m

Product code: AW-A2458G-S2SRP
Producer: SECTRON

Antenna WiFi Adhesive U25, 2.4/5 GHz, 5 dBi, SMA-RP(pin f), RG174/3m

Omnidirectional antenna with the gain of 2.5 dBi, working in 2.4 GHz a 5 GHz bands and is suited for receiving/transmitting Wi-Fi signal.

9.55incl. VAT (21%) / pc

excl. VAT 7.89 € / pc

In stock
i
- +
Add to compare

If the customer is not registered for VAT, the rate according to his country of residence will be added.

Detailed description

Omnidirectional WiFi antenna

Omnidirectional antenna with the gain of 2.5 dBi, working in 2.4 GHz a 5 GHz bands and is suited for receiving/transmitting Wi-Fi signal. It is suitable for WiFi networks in homes and offices, where it provides connections to modems and routers. Comes with 3M double-sided tape for easy mounting on glass or plastic. It is supplied with 3 m cable with SMA-R (pin f) connector.

Connector specifications SMA:

These are high-frequency connectors with screw connection mechanism. The characteristic impedance of the connector is 50 Ohm and the operating frequency range up to 18 GHz. There are two types of SMA connectors, namely SMA and RP-SMA. Most of the current cellular routers are equipped with SMA connectors for connecting Wi-Fi / 2G / 3G / LTE / GPS antennas terminated by proticates. It is also used as a standard connector in RF measuring technology. They are characterized by high reliability, durability, high mechanical stability and optimal electrical properties.

Cable specifications RG174/U:

The cable labeled RG174 / U is a basic variant of a coaxial cable that is compatible with connectors applicable to a cable diameter of 2.8 mm. The characteristic impedance of the cable is 50 Ω. The reduction factor is fixed at 0.66. The most common cables of this type have a temperature range of -20 to 80 °C.
It is most often used for creating cable adaptors with connectors such as BNC / FAKRA / FME / MCX / MMCX / N / SMA / SMB / SMP / TNC and others. It is ideal for short and bending stressed connections in measuring and telecommunications technology, for GPS / GSM / WLAN antennas, antenna leads etc. There are also specially modified types of RG174/U cables for outdoor use, which are UV resistant, as well as for use in extreme conditions. There are made of different materials, different qualities.

Technical parameters can be found in the attached datasheet.

Parameters

Impedance 50  Ohm Cabel RG174/U
Connector RP-SMA(f) Maximum input power 10  W
Polarization Linear Execuion External
Operating temperature -30 ~ +80  °C Dimensions 18 x 108  mm
Directivity Omnidirectional Technology WIFI
Weight 48.3  g Gain 2.5  dBi
VSWR <2.0:1 Radiation angle H 360 V 30
Type of attachment Adhesive

9.55incl. VAT (21%) / pc

excl. VAT 7.89 € / pc
