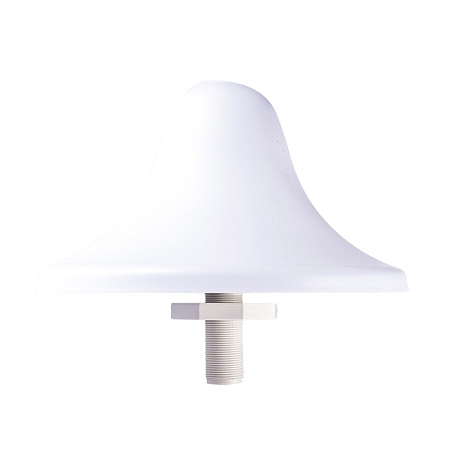

Antenna WiFi Ceiling Mount W915, 3 dBi, N(m), RG58/1m, White

Product code: AW-A24G-W915N /Manufacturer: SECTRON

New item
aw-a24g-w915n-01 aw-a24g-w915n-02

10.64 EUR Without VAT

On request When do I get the item?

guarantee 24 months
Subject*
Name and surname*
E-mail*
Inquiry*
By submitting the form, you agree to the privacy policy.
Your name and surname*
E-mail*
Send e-mail*
Message*
By submitting the form, you agree to the privacy policy.

Description

Omnidirectional multi-band GSM and WiFi antenna

Omnidirectional multiband antenna with N (m) connector designed for signal reception and transmission in GSM and WiFi technologies. It works in the 900/1800/2100/2400 MHz bands. The antenna is designed for ceiling mounting and is used for connection to routers and modems.

Connector specifications N:

Connectors with a screw-thread mechanism. N connectors are characterized by high reliability and mechanical stability. The characteristic impedance of the connector is 50 Ohm and the working frequency ranges up to 11 GHz. N connectors are used, for example, to connect wireless WLAN devices, satellite systems and GSM / GPS / Wi-Fi antennas.

Technical parameters can be found in the attached datasheet.

Parameters

impendance: 50 Ohm Cable: RG58/U
Connector: N(m) Maximum input power: 10 W max.
Polarization: Linear Execution: External
Operational temperature: -40 °C - +85 °C Dimensions: 166 x 136.6 mm
Directivity: Omni-directional Technology : GSM / WIFI
Weight: 300 g VSWR: <2.0:1
Radiation angle: H 360° V 70° GAIN: 3 dBi
TYPE OF ATTACHMENT: Connector Mount
