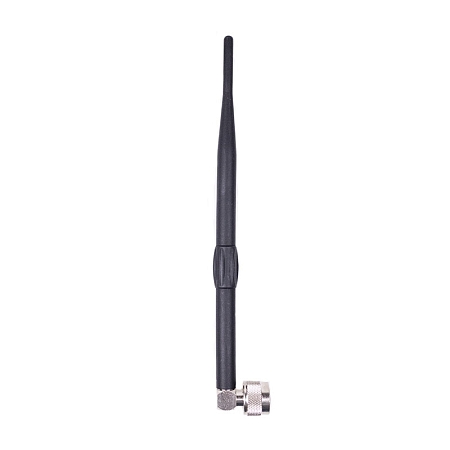

Antenna WiFi Connector Mount 7NRAB, 2.4 GHz, 7 dBi, N(m) 90°, IP65

Product code: AW-A24G-7NRAB /Manufacturer: SECTRON

Sale
aw-a24g-7nrab-wifi-antenna-sectron-01 aw-a24g-7nrab-wifi-antenna-sectron-03 aw-a24g-7nrab-wifi-antenna-sectron-02 aw-a24g-7nrab-wifi-antenna-sectron-04

11.96 EUR Without VAT

In stock When do I get the item?

guarantee 24 months
Subject*
Name and surname*
E-mail*
Inquiry*
By submitting the form, you agree to the privacy policy.
Your name and surname*
E-mail*
Send e-mail*
Message*
By submitting the form, you agree to the privacy policy.

Description

Omnidirectional outdoor Wi-Fi antenna

Omnidirectional outdoor antenna with a gain of 7 dBi, working in 2.4 GHz band and is suited for receiving/transmitting Wi-Fi signal. Thanks to its precise construction, this antenna has excellent weather resistance which makes it suitable for outdoor installations. The antenna is equipped with a N(m) 90 ° connector.

Connector specifications N:

Connectors with a screw-thread mechanism. N connectors are characterized by high reliability and mechanical stability. The characteristic impedance of the connector is 50 Ohm and the working frequency ranges up to 11 GHz. N connectors are used, for example, to connect wireless WLAN devices, satellite systems and GSM / GPS / Wi-Fi antennas.


Technical parameters can be found in the attached datasheet.

Parameters

impendance: 50 Ohm Cable: N/A
Connector: N(m) Maximum input power: 10 W max.
Polarization: Linear Execution: External
Operational temperature: -20 °C - +55 °C Dimensions: 240 x 33.5 mm
Directivity: Omni-directional Protection rating: IP65
Technology : Bluetooth / WiFi Weight: 66.11 g
VSWR: <1.6:1 Radiation angle: H 360° V 30°
GAIN: 7 dBi TYPE OF ATTACHMENT: Screw
