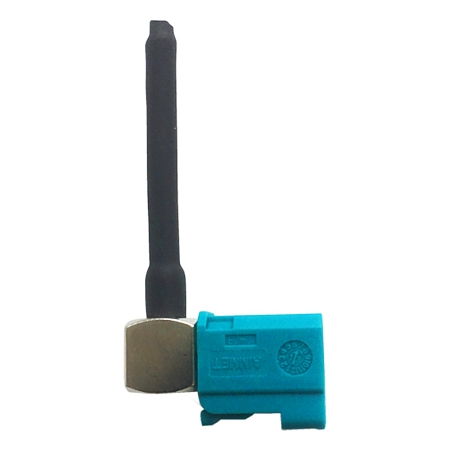

Antenna WiFi Connector Mount FFZR, 2.4 GHz, FAKRA Z (f) 90°

Product code: AW-A24G-FFZR /Manufacturer: SECTRON

New item
aw-a24g-ffzr-wifi-antenna-obrazek

4.50 EUR Without VAT

On request When do I get the item?

guarantee 24 months
Subject*
Name and surname*
E-mail*
Inquiry*
By submitting the form, you agree to the privacy policy.
Your name and surname*
E-mail*
Send e-mail*
Message*
By submitting the form, you agree to the privacy policy.

Description

Omnidirectional interior WiFi antenna

Omnidirectional interior antenna with a gain of 0 dBi, working in 2.4 GHz band and is suited for receiving/transmitting Wi-Fi signal. This type of antenna is most often used with modems and routers.

Connector specifications FAKRA:

Fakra connectors in plastic housing. These housings are available in 14 different colors for easy identification. The characteristic impedance of the connector is 50 Ohm, working frequency ranges up to 6 GHz, working temperature is from -40 °C to 105 °C. Fakra connectors are most often used in the automotive industry, for example for connecting antennas, radios, navigation. They are also widely used in M2M and IoT devices. Connecting and disconnecting Fakra connectors is easy, we guarantee up to 25 cycles.

Technical parameters can be found in the attached datasheet.

Parameters

impendance: 50 Ohm Connector: FAKRA Z(f) R/A
Maximum input power: 1 W max. Polarization: Linear
Execution: Internal Operational temperature: -30 °C - +90 °C
Dimensions: 44 x 22.9 mm Directivity: Omni-directional
Technology : WLAN / Bluetooth Weight: 8.11 g
VSWR: <1.5:1 Radiation angle: H 360° V 30°
GAIN: 0 dBi TYPE OF ATTACHMENT: Screw Mount
