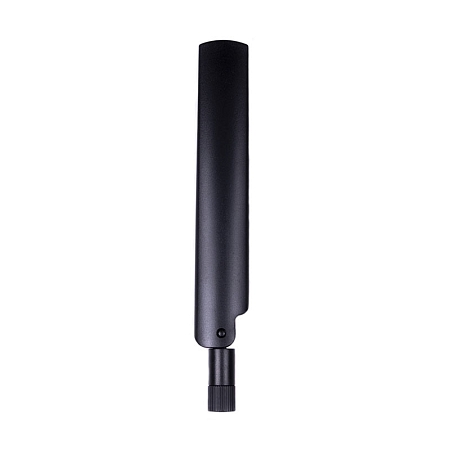

Antenna WiFi Connector Mount FLAT SRPK, 2.4/5 GHz, 5 dBi, RP-SMA(pin f), Black

Product code: AW-A2458G-FSRPK-B /Manufacturer: SECTRON

aw-a2458g-fsrpk-b-antena-wifi-sectron-01 aw-a2458g-fsrpk-b-antena-wifi-sectron-04 aw-a2458g-fsrpk-b-antena-wifi-sectron-02 aw-a2458g-fsrpk-b-antena-wifi-sectron-05 aw-a2458g-fsrpk-b-antena-wifi-sectron-03

4.98 EUR Without VAT

On request When do I get the item?

guarantee 24 months
Subject*
Name and surname*
E-mail*
Inquiry*
By submitting the form, you agree to the privacy policy.
Your name and surname*
E-mail*
Send e-mail*
Message*
By submitting the form, you agree to the privacy policy.

Description

Omnidirectional connector mount WiFi antenna

Omnidirectional Wi-Fi antenna with a gain of 5 dBi and RP-SMA(pin f) connector. Working in 2.4/5 GHz band and is suited for receiving/transmitting Wi-Fi signal. The antenna is primarily suited for households. It operates well with routers and modems.

Connector specifications SMA:

These are high-frequency connectors with screw connection mechanism. The characteristic impedance of the connector is 50 Ohm and the operating frequency range up to 18 GHz. There are two types of SMA connectors, namely SMA and RP-SMA. Most of the current cellular routers are equipped with SMA connectors for connecting Wi-Fi / 2G / 3G / LTE / GPS antennas terminated by proticates. It is also used as a standard connector in RF measuring technology. They are characterized by high reliability, durability, high mechanical stability and optimal electrical properties.

Technical parameters can be found in the attached datasheet.

Parameters

Certifikace: RoHS / ISO 9001 / ISO 14001 impendance: 50 Ohm
Cable: N/A Connector: SMA-RP(f-pin)
Maximum input power: 10 W max. Polarization: Linear
Execution: External Operational temperature: -40 °C - +60 °C
Dimensions: 10 x 20 x 138 mm / 10 x 38.5 x 115 mm Directivity: Omni-directional
Technology : WiFi Weight: 15.71 g
VSWR: <1.5:1 Radiation angle: H 360° V 30°
GAIN: 3.5 dBi TYPE OF ATTACHMENT: Connector mounting
