Product code: AW-AW-FPC70U75
Producer: SECTRON

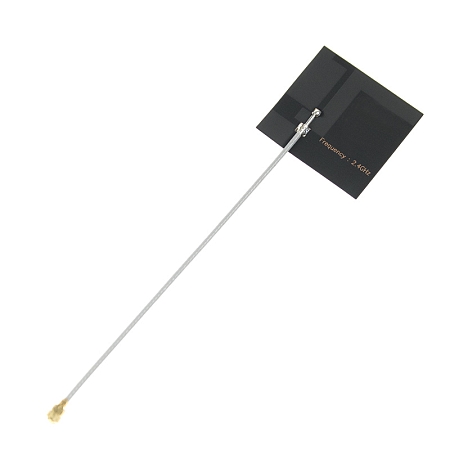

Antenna WiFi Internal FLEX 70, 2.4 GHz, U.FL(f) RA, 1.37mm Coaxial Cable/75mm

Product code: AW-AW-FPC70U75
Producer: SECTRON

Antenna WiFi Internal FLEX 70, 2.4 GHz, U.FL(f) RA, 1.37mm Coaxial Cable/75mm

Omnidirectional adhesive WiFi antenna working in bands 2.4 and 5 GHz.

5.64incl. VAT (21%) / pc

excl. VAT 4.66 € / pc

Temporarily unavailable
i
Temporarily unavailable Add to compare

If the customer is not registered for VAT, the rate according to his country of residence will be added.

Detailed description

WLAN internal antenna, cable length 75 mm

Omnidirectional adhesive WiFi antenna working in bands 2.4 and 5 GHz. It is designed for integration into cellular routers and supplied with 75 mm cable with U.FL connector. It comes with 3M sticker for easy assembly.

Connector specifications U.FL:

U.FL connectors are used in cases where there is very little space for connecting / interconnecting RF components eg in wireless communication devices, electronic measuring instruments, mobile phones, GPS and wireless LANs. Gold-plated central contact of the U.FL connector improves its properties. The characteristic impedance of the connector is 50 Ohm and the operating frequency ranges up to 6 GHz.

Coaxial Cable RF 1.37 specifications :

The coaxial cable RF 1.37 is compatible with connectors that are applicable to a 1.37 mm cable diameter. Due to its features and size, it is widely used in applications that require high-frequency transmission using miniature coaxial connections. It is suitable for applications involving RF communication equipment, as well as electronic measuring instruments. It is most often used for creating cable adaptors with connectors such as U.FL / SMA / FME / MCX / TNC and others. The resulting cable adaptors are most often used to connect external antennas to eg cellular modules or IoT / NB-IoT / WiFi / GNSS and other RF devices.


Technical parameters can be found in the attached datasheet.

Parameters

Impedance 50  Ohm Cabel RF 1.37
Maximum input power 5  W Polarization Linear
Execuion Internal Operating temperature -40 ~ +85  °C
Dimensions 27 x 25 x 0.1  mm Directivity Omnidirectional
Technology WLAN Weight 0.55  g
Gain 5  dBi VSWR <1.5:1
Radiation angle H 360 V 30 Type of attachment Adhesive

5.64incl. VAT (21%) / pc

excl. VAT 4.66 € / pc
