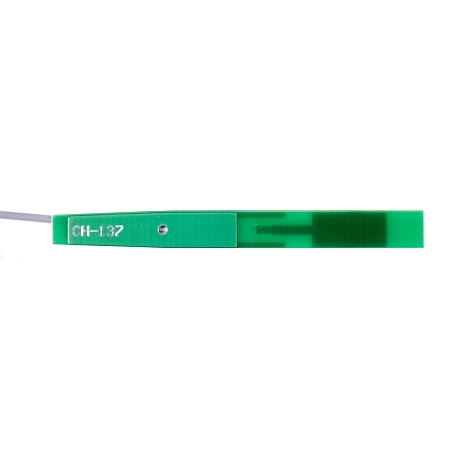

Directional internal WiFi antenna
Directional internal WiFi antenna with a gain of 3.5 dBi allows the use of the 2.4 GHz and 5 GHz bands. The antenna is designed to be integrated into devices that support WLAN technology. The antenna includes a RF 1.13 mm coaxial cable with a length of 200 mm, terminated with an IPEX MHF-4L (f) 90 ° connector.
Specifications cable 1.13:
The LP 040 coaxial cable is compatible with connectors that are applicable to a 0.81 mm cable diameter. Due to its features and size, it is widely used in applications that require high-frequency transmission using miniature coaxial connections. It is suitable for applications involving RF communication equipment, as well as electronic measuring instruments. It is most often used for creating cable adaptors with connectors such as U.FL / SMA / FME / MCX / TNC and others. The resulting cable adaptors are most often used to connect external antennas to eg cellular modules or IoT / NB-IoT / WiFi / GNSS and other RF devices.
More information can be found in the attached datasheet.
