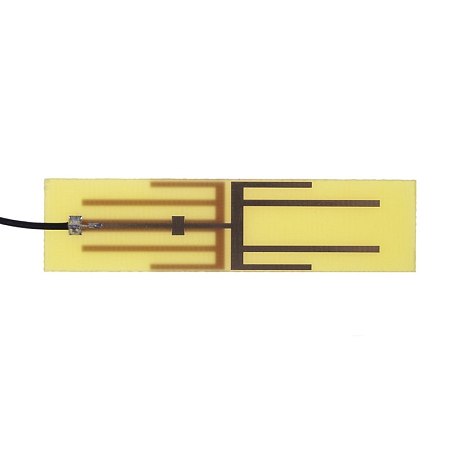

Omnidirectional internal WiFi antenna
Omnidirectional internal antenna with the gain of 3 dBi, working in 2400/5800 MHz bands and is suited for receiving/transmitting Wi-Fi signal. The antenna is suited for modems and routers. The antenna is supplied with a 300mm RF 1.13 cable with IPEX MHF 90° (f )connector.
*Connector *specifications IPEX MHF:
IPEX MHF connectors are compatible with U.FL connectors for applications where there is very little space for connecting / interconnecting RF components. The characteristic impedance of the connector is 50 Ohm and the operating frequency range up to 9 GHz.
Cable specifications RF 1.13:
The RF 1.13 coaxial cable is compatible with connectors that are applicable to a 1.13 mm cable diameter. Due to its features and size, it is widely used in applications that require high-frequency transmission using miniature coaxial connections. It is suitable for applications involving RF communication equipment, as well as electronic measuring instruments. It is most often used for creating cable adaptors with connectors such as U.FL / SMA / FME / MCX / TNC and others. The resulting cable adaptors are most often used to connect external antennas to eg cellular modules or IoT / NB-IoT / WiFi / GNSS and other RF devices.
Technical parameters can be found in the attached datasheet.
