Product code: AW-A2458G-W414I
Producer: SECTRON

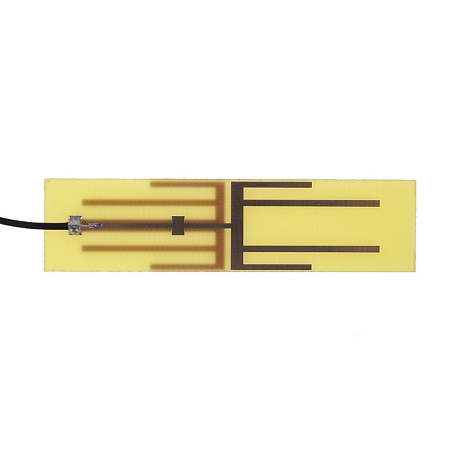

Antenna WiFi Internal W414, 2.4/5.8 GHz, 3 dBi, IPEX MHF1(f) RA, 1.13mm Coaxial Cable/200mm

Product code: AW-A2458G-W414I
Producer: SECTRON

Antenna WiFi Internal W414, 2.4/5.8 GHz, 3 dBi, IPEX MHF1(f) RA, 1.13mm Coaxial Cable/200mm

Omnidirectional internal antenna working in 2400/5800 MHz band.

3.13incl. VAT (21%) / pc

excl. VAT 2.59 € / pc

Temporarily unavailable
i
Temporarily unavailable Add to compare

If the customer is not registered for VAT, the rate according to his country of residence will be added.

Detailed description

Omnidirectional internal WiFi antenna

Omnidirectional internal antenna with the gain of 3 dBi, working in 2400/5800 MHz bands and is suited for receiving/transmitting Wi-Fi signal. The antenna is suited for modems and routers. The antenna is supplied with a 200mm RF 1.13 cable with IPEX MHF(f) 90° connector.

Connector specifications IPEX MHF:

IPEX MHF connectors are compatible with U.FL connectors for applications where there is very little space for connecting / interconnecting RF components. The characteristic impedance of the connector is 50 Ohm and the operating frequency range up to 9 GHz.

Cable specifications RF 1.13:

The RF 1.13 coaxial cable is compatible with connectors that are applicable to a 1.13 mm cable diameter. Due to its features and size, it is widely used in applications that require high-frequency transmission using miniature coaxial connections. It is suitable for applications involving RF communication equipment, as well as electronic measuring instruments. It is most often used for creating cable adaptors with connectors such as U.FL / SMA / FME / MCX / TNC and others. The resulting cable adaptors are most often used to connect external antennas to eg cellular modules or IoT / NB-IoT / WiFi / GNSS and other RF devices.

Technical parameters can be found in the attached datasheet.

Parameters

Impedance 50  Ohm Cabel RF 1.37 , RF 1.13
Connector IPEX-MHF(f) R/A Maximum input power 10  W
Polarization Linear Execuion Internal
Operating temperature -40 ~ +85  °C Dimensions 60 x 15 x 0.6  mm
Directivity Omnidirectional Technology WIFI
Weight 6.82  g Gain 3  dBi
VSWR <1.2:1 Radiation angle H 360 V 30
Type of attachment Patch panel Certification RoHS

3.13incl. VAT (21%) / pc

excl. VAT 2.59 € / pc
