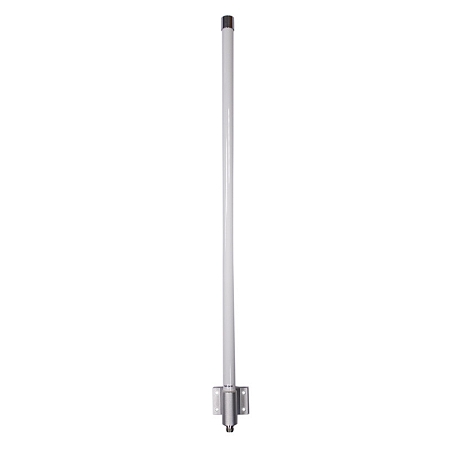

Antenna WiFi OMNI 5015, 5 GHz, 15 dBi, N(f)

Product code: AO-1GF-51815 /Manufacturer: SECTRON

ao-1gf-51815-wifi-antena-01 ao-1gf-51815-wifi-antena-04 ao-1gf-51815-wifi-antena-05 ao-1gf-51815-wifi-antena-03 ao-1gf-51815-wifi-antena-02

79.67 EUR Without VAT

In stock When do I get the item?

guarantee 24 months
Subject*
Name and surname*
E-mail*
Inquiry*
By submitting the form, you agree to the privacy policy.
Your name and surname*
E-mail*
Send e-mail*
Message*
By submitting the form, you agree to the privacy policy.

Description

Omnidirectional outdoor WiFi antenna

Omnidirectional antenna for WiFi technologies. The antenna operates in the frequency band 5 GHz. It is characterized by a high gain of 15 dBi. Thanks to its precise construction, this antenna has excellent weather resistance which makes it suitable for outdoor installations.

The package contains a holder that ensures a firm and stable attachment of the antenna.

Specifications connector N:

Connectors with a screw-thread mechanism. N connectors are characterized by high reliability and mechanical stability. The characteristic impedance of the connector is 50 Ohm and the working frequency ranges up to 11 GHz. Temperature range is -65 °C to +165 °C. N connectors are used, for example, to connect wireless WLAN devices, satellite systems and GSM / GPS / Wi-Fi antennas.

More information can be found in the attached datasheet.

Parameters

impendance: 50 Ohm Connector: N(f)
Maximum input power: 50 W max. Polarization: Linear
Execution: External Operational temperature: -20 °C - +80 °C
Dimensions: 740 x 26 mm Directivity: Omni-directional
Technology : WiFi Weight: 476.79 g
VSWR: <1.5:1 Radiation angle: H 360° V 30°
GAIN: 15 dBi TYPE OF ATTACHMENT: Screw Mount
