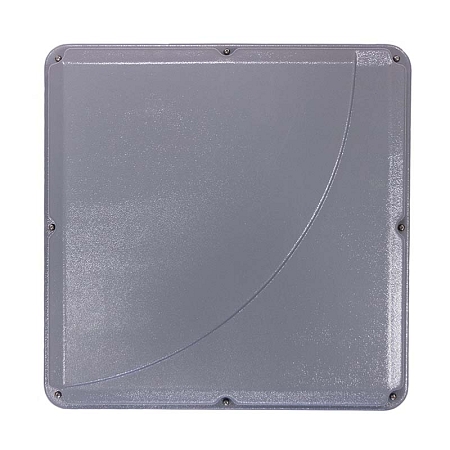

Antenna WiFi PANEL 5923, 5.1-5.9 GHz, 23 dBi, N(f)

Product code: AO-1SKF-5923 /Manufacturer: SECTRON

Sale
ao-1skf-5923-wifi-antena-01 ao-1skf-5923-wifi-antena-04 ao-1skf-5923-wifi-antena-05 ao-1skf-5923-wifi-antena-02 ao-1skf-5923-wifi-antena-06 ao-1skf-5923-wifi-antena-03

41.00 EUR Without VAT

In stock When do I get the item?

If the customer is not registered for VAT, the rate according to his country of residence will be added.
guarantee 24 months
Subject*
Name and surname*
E-mail*
Inquiry*
By submitting the form, you agree to the privacy policy.
Your name and surname*
E-mail*
Send e-mail*
Message*
By submitting the form, you agree to the privacy policy.

Description

Directional Wifi antenna

The directional outdoor antenna with a gain of 23 dBi is designed for signal reception in WiFi technology. The antenna operates in bands 5100/5300/5400/5800/5900 MHz and is equipped with an N (f) connector. Thanks to its precise construction, this antenna has an excellent weather resistance which makes it suitable for outdoor installations.

The package contains a holder that ensures a firm and stable attachment of the antenna.

Connector specifications N:

A connectors with a screw-thread mechanism. N connectors are characterized by high reliability and mechanical stability. The characteristic impedance of the connector is 50 Ohm and the working frequency ranges up to 11 GHz. Temperature range is -40 °C to +80 °C. N connectors are used, for example, to connect wireless WLAN devices, satellite systems and GSM / GPS / Wi-Fi antennas.

Technical parameters can be found in the attached datasheet.

Parameters

impendance: 50 Ohm Connector: N(f)
Polarization: Linear Execution: External
Operational temperature: -40 °C - +80 °C Dimensions: 370 x 370 x 35 mm
Directivity: Directional Technology : WiFi
Weight: 1350 g VSWR: <1.5:1
Radiation angle: H 360° V 30° GAIN: 23 dBi
TYPE OF ATTACHMENT: Screw Mount
