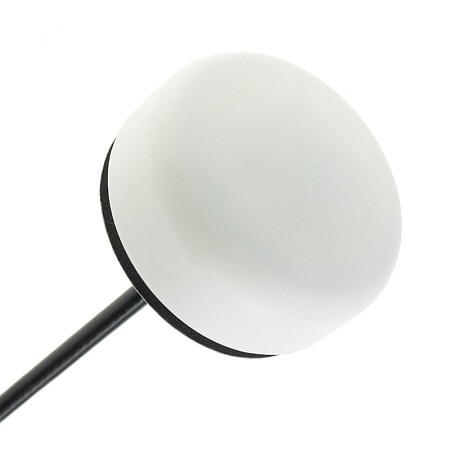

Antenna WiFi Screw Mount R36, 2.4 GHz, 7 dBi, SMA(m), .195/2m, IP67, White Rubber Protective Coating

Item code: AW-A24G-36S2-W /Manufacturer: SECTRON

aw-a24g-36s2-w-01 aw-a24g-36s2-w-03 aw-a24g-36s2-w-02

43.05 EUR Without VAT

On request When do I get the item?

If the customer is not registered for VAT, the rate according to his country of residence will be added.
guarantee 24 months
Name and surname*
By submitting the form, you agree to the privacy policy.
Your name and surname*
Send e-mail*
By submitting the form, you agree to the privacy policy.


Omnidirectional screw mount WiFi antenna, white color

Omnidirectional screw mount antenna with a gain of 7 dBi, working in 2400-2485 MHz bands and is suited for receiving/transmitting Wi-Fi signal. The antenna is suited for modems/routers. It is supplied with .195 cable with SMA (m) connector. Thanks to the protection IP67, it is suitable for outdoor use. The surface of the antenna is specially treated with multi-layer rubber protective coating. The case is characterized by high vandalism and wind resistance.

Cable specifications .195:

The .195 coaxial cable is compatible with connectors applicable to cables with 4.95 mm outer diameter. It is mainly used for the frequency range 0-6 GHz. The characteristic impedance is 50 Ω and the operating temperature range -40 °C to + 85 °C. The shortening factor is set at 0.79. The .195 cable is used in metrology, wireless communications, the automotive industry and also for VHF and UHF applications. It is also often used for creating cable adaptors with plug connectors such as BNC / N / SMA / TNC.

Connector specifications SMA:

These are high-frequency connectors with screw connection mechanism. The characteristic impedance of the connector is 50 Ohm and the operating frequency range up to 18 GHz. There are two types of SMA connectors, namely SMA and RP-SMA. Most of the current cellular routers are equipped with SMA connectors for connecting Wi-Fi /2G/3G/LTE/GPS antennas terminated by proticates. It is also used as a standard connector in RF measuring technology.

Technical parameters can be found in the attached datasheet.


Certifikace: RoHS / ISO 9001 / ISO 14001 impendance: 50 Ohm
Cable: .195 Connector: SMA(m)
Maximum input power: 10 W max. Input voltage: 2.2 – 5 V DC
Polarization: Linear Execution: External
Operational temperature: -40 °C - +85 °C Dimensions: 54.4 x 42.9 mm
Directivity: Directional Protection rating: IP67
Technology : WiFi Weight: 166.55 g
VSWR: <1.6:1 GAIN: 7 dBi
