BISM II - Bluetooth Serial Module II

Item code: WM-TRBLU23 /Manufacturer: Laird Technologies /PRODUCT CODE: TRBLU2300200-07-0

36.03 EUR Without VAT

On request When do I get the item?

If the customer is not registered for VAT, the rate according to his country of residence will be added.
guarantee 12 months
Subject*
Name and surname*
E-mail*
Inquiry*
By submitting the form, you agree to the privacy policy.
Your name and surname*
E-mail*
Send e-mail*
Message*
By submitting the form, you agree to the privacy policy.

Description

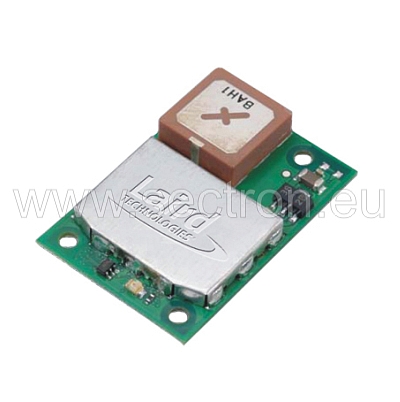

Laird Technologies TRBLU23  - 2.4 GHz Bluetooth Module

The TRBLU23 module is specifically designed for applications where robust short range connectivity is required.provides a reliable Bluetooth 2.0 connection. This module features an excellent range of up to 300 meters and very low power consumption (less than 36 mA).

Key features:

 Best-in-class range provides open field connectivity in excess of 300 meters
 Integrated high-performance ceramic antenna
 Adaptive frequency hopping to cope with interference from other wireless products
 Optimised receive sensitivity to provide long range initial connections that largely eliminate connection hysteresis
 Operating temperature range of -40°C to +85°C
 Data transfer rate up to 300 kbps
 Fully approved product
 Class 1 version 2.0 Bluetooth
 Receive sensitivity better than -84 dBm
 Support for 128 bit encryption
 Non-discoverable modes
 40 way Hirose connector
 2 X 8 bit ADCs
 9 X GPIO
 Low power modes
 Supports Wi-Fi co-existence
 Embedded Bluetooth stack
 Integrated antenna with up to 300m range
 External antenna version available

More information can be found in the attached datasheet.

Parameters

Certifikace: RoHS Power supply: 3.3 V
Work frequency: 2402-2480 MHz Operational temperature: -40 to +85 °C
Technology : Bluetooth

Documents for download

TRBLU23.pdf (123.944 kB)
