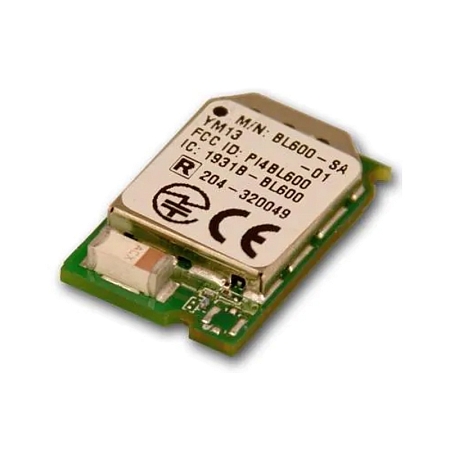

BL600-SA - Single Mode BLE Module, smart BASIC, Integrated Antenna

Item code: WM-BL600-SA /Manufacturer: Laird Technologies /PRODUCT CODE: BL600-SA-04

wm-bl600-sa

11.81 EUR Without VAT

On request When do I get the item?

If the customer is not registered for VAT, the rate according to his country of residence will be added.
guarantee 12 months
Subject*
Name and surname*
E-mail*
Inquiry*
By submitting the form, you agree to the privacy policy.
Your name and surname*
E-mail*
Send e-mail*
Message*
By submitting the form, you agree to the privacy policy.

Description

BL600-SA - Single Mode BLE

BL600 Series modules from Laird make it easy to add single-mode Bluetooth Low Energy (BLE), or Bluetooth Smart, to small, portable, power-conscious devices, including those powered by AAA or coin cell batteries. The fully approved, programmable modules feature Laird's innovative, event-driven smartBASIC programming interface, which significantly simplifies BLE module integration. Available in BL600-SA, BL600-SC, BL600-ST variants

Key features:

• Bluetooth 4.0
• Class: Bluetooth Low Energy (BLE)
• Frequency: 2.4 GHz
• Sensitivity: - 91 dBm
• Output power: 4 dBm
• Data transfer rate: 1 Mbps
• Interface type: GPIO, I2C, SPI, UART
• Operating supply voltage: 1.8 V to 3.6 V
• Operating temperature: +75 ° C to -25 ° C
• Protocol - Bluetooth, BLE - 802.15.1: BLE
• Antenna: Integrated
• Frequency range: 2.402 GHz to 2.48 GHz
• Dimensions: 3 mm × 19 mm × 12.5 mm

More information can be found in the attached datasheet.

Parameters

Certifikace: FCC / IC / CE / MIC Power supply: 1.8 – 3.6 V
Work frequency: 2402-2480 MHz Operational temperature: -25 až +75 °C
Dimensions: 3 × 19 × 12.5 mm Technology : Bluetooth Low Energy (BLE)
