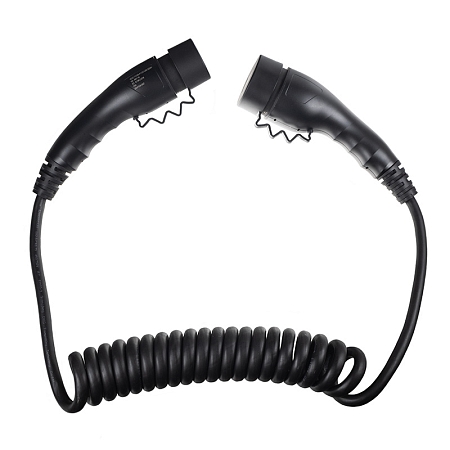

Spiral charging cable for charging electric cars, length 4 m/2.5 m
Connect your electric car to a charging station using Type 2 connectors. This cable supports charging power up to 11 kW and a current of 16 A. The coiled cable is 4 m long, with a usable reach of 2.5 m.
Choosing and using the cable
If you have purchased an electric car, a correct and high-quality power cable is the part of equipment that will provide you with comfortable charging of your car, both from the comfort of your home and at public charging stations. The ultra light charging cable is the only one on the market that excels in low weight. This makes the cable is easy to handle and easy to store. The charging cable is intended for charging a car with a Type 2 / Type 2 connector. The length of the cable is 4 meters, due to twisting it can only be used up to a length of 2.5 meters.
Charging your electric car
When choosing a new cable, the length of the cable is also important, which will make it easier for you to handle the cable in the garage or public parking lot.
Spiral three-phase charging cable designed for charging electric vehicles with a maximum current of 16 A and an output of 11 kW.
Materials and construction
The EV cable is a type of flexible cable for connecting an electric vehicle to a charging station equipped with Type 2. It is made of high quality copper with excellent conductive properties. The insulating material of the TPE cable is soft and has high strength.
Due to safety regulations, this cable must not be used as an extension between the wallbox’s integrated charging cable and the vehicle.
Charging cable parameters:
- Typ cable: spiral
- Cable: 5×2,5mm² + 1×0.5 mm²
- The length of the charging cable is 4 m (2.5 m usable - spiral cable cannot be stretched to full length)
- Rated current: 16 A
- Rated frequency: 60 Hz
- The maximum charging power: 11 kW
- Operating voltage: 230/400 V AC
- Vehicle connector: Type 2 IEC62196-2 Female plug (DSIEC2e-EV32P)
- Charger connector: Type 2 IEC62196-2 Male plug (DSIEC2b-EV32P)
- Number of signal contacts 2 (CP, PP)
- Signal contacts: 2 A / 30 V AC
- Rubber connector cover
- Operating temperature: -30 °C ~ 50 °C
- Weight: 1.76 kg
- Standard IEC62196
- IP54 protection
