Connector FME(m) for PCB, EDGE

Product code: AO-FME-EDGE /Manufacturer: SECTRON

1.75 EUR Without VAT

In stock When do I get the item?

Price from 10 pieces 1.58 EUR

Price from 100 pieces 1.42 EUR

guarantee 24 months
Subject*
Name and surname*
E-mail*
Inquiry*
By submitting the form, you agree to the privacy policy.
Your name and surname*
E-mail*
Send e-mail*
Message*
By submitting the form, you agree to the privacy policy.

Description

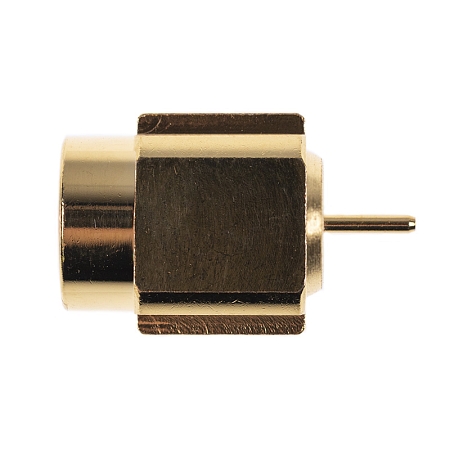

Connector FME (m) for PCB, EDGE

FME coaxial connectors are characterized by high reliability and mechanical stability. The characteristic impedance of the connector is 50 Ohm and the operating frequency ranges up to 2 GHz. Temperature range is -65 °C to +155 °C. Thanks to their compact size and long longevity, the FME connectors are used in the field of mobile communications as well as for GSM antennas. They are suitable for installation in vehicles as well.

The FME (m) connector is for mounting and soldering to the panel.

Parameters:

• Type: Male (m)
• Impedance: 50 Ω
• VSWR: <1.3: 1
• Insulation resistance: 5 000 MΩ
• Maximum frequency: 0-2 GHz
Mating cycles: 500 cycles
• Operating temperature: - 65 °C to + 155 °C
• Weight: 5.93 g

Technical parameters can be found in the attached datasheet or contact our sales department.
