Product code: AO-MFE-01
Producer: SECTRON

Connector MCX(f)straight 1, EDGE

Sale
Product code: AO-MFE-01
Producer: SECTRON

Connector MCX(f)straight 1, EDGE

MCX connector straight 1, EDGE is designed for soldering to the panel.

0.83incl. VAT (21%) / pc

excl. VAT 0.69 € / pc

In stock
i
- +
Add to compare

If the customer is not registered for VAT, the rate according to his country of residence will be added.

Detailed description

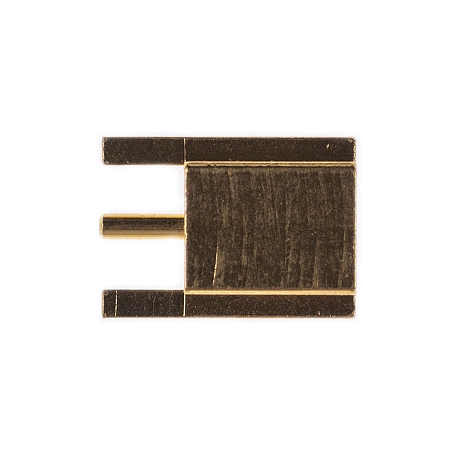

MCX Connector (female) straight 1, EDGE

MCX Connector with latch mechanism is compatible with SMB connectors but is 30% smaller than SMB connectors. The dimensions of the internal contact and the insulator are the same. The impedance of the connector is either 50 Ohm with an operating frequency range up to 6 GHz or 70 Ohm with an operating range up to 3 GHz. MCX connector is characterized by high reliability and mechanical stability. MCX connector is also used as standard connectors in GPS devices, WLAN networks, and fixed and mobile communications.

Connector MCX (f) straight 1, EDGE is designed for soldering to the panel.

Material and finish MCX Connector:

• Body: Brass / Thin Gold over Nickel
• Socket Contact: Berylium Copper / Gold 0.13um min over Nickel
• Insulator: PTFE / -

Parameters MCX Connector:

• Type: Female
Impedance: 50 Ω
• Insulation resistance: 1 000 MΩ
• Center contact resistance: 5 mΩ
• Outer contact resistance: 1 mΩ
• Maximum frequency: 0-6 GHz
 Mating cycles: 500 cycles
• Operating temperature: - 65 °C to + 165 °C
• Weight: 1.8 g

Technical parameters can be found in the attached datasheet.
