Product code: AO-CFE-01
Producer: SECTRON

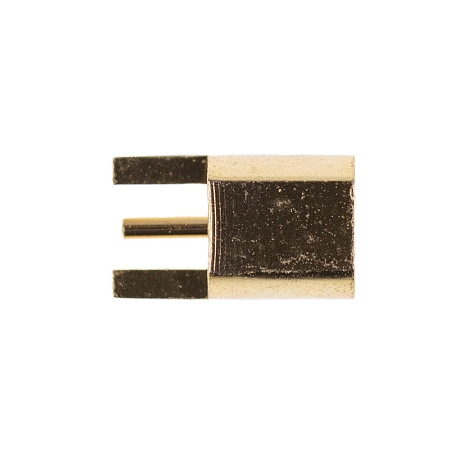

Connector MMCX(f)straight 1, EDGE

Product code: AO-CFE-01
Producer: SECTRON

Connector MMCX(f)straight 1, EDGE

The MMCX (f) coaxial connector is attached to a specific panel using the EDGE method.

2.07incl. VAT (21%) / pc

excl. VAT 1.71 € / pc

Price from 10 pieces 1.29 €

Price from 100 pieces 1.07 €

In stock
i
- +
Add to compare

If the customer is not registered for VAT, the rate according to his country of residence will be added.

Detailed description

Connector MMCX (f) straight, EDGE

These are coaxial connectors with a latch mechanism, which are compatible with MCX connectors but have a smaller size. The characteristic impedance of the connector is 50 Ohm and the working frequency range up to 6 GHz. Operating temperature range -65 °C to + 165 °C. They are characterized by high reliability and mechanical stability. They are also used as standard connectors in GPS devices, WLAN networks, fixed and mobile communications.

The MMCX (f) coaxial connector is attached to a specific panel using the EDGE method.

Material and finish:

• Body: brass / gold over nickel
• Socket contact: beryllium copper / nickel with 0.13 μm gold
• Insulator: PTFE / -

Parameters:

• Type: Female (f)
Impedance: 50 Ω
• Maximum frequency: 0-6 GHz
• Insulation resistance: 500 MΩ
• Center contact resistance: 5 mΩ
• Outer contact resistance: 1 mΩ
• Mating cycles: 100
• Operating temperature: - 65 °C to + 165 °C

Technical parameters can be found in the attached datasheet or contact our sales department.
