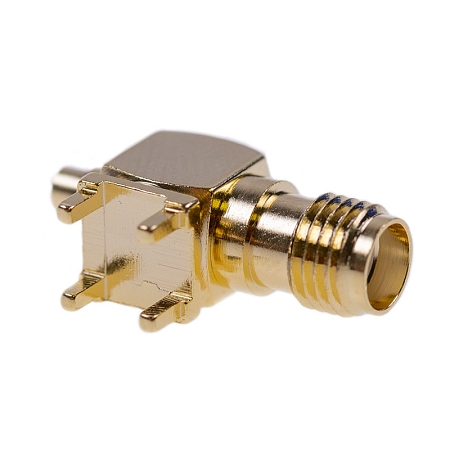

Connector SMA(f) R/A BH cable straight, THD

Product code: AO-SFT-03 /Manufacturer: SECTRON

ao-sft-03-01 ao-sft-03-konektor-sma-sectron-03 ao-sft-03-konektor-sma-sectron-02

2.86 EUR Without VAT

In stock < 10 ks When do I get the item?

Price from 10 pieces 2.14 EUR

Price from 100 pieces 1.79 EUR

guarantee 24 months
Subject*
Name and surname*
E-mail*
Inquiry*
By submitting the form, you agree to the privacy policy.
Your name and surname*
E-mail*
Send e-mail*
Message*
By submitting the form, you agree to the privacy policy.

Description

Connector SMA(f) R/A BH cable straight, THD

These are high-frequency connectors with screw connection mechanism. The characteristic impedance of the connector is 50 Ohm and the operating frequency range up to 18 GHz. There are two types of SMA connectors, namely SMA and RP-SMA. The connection and disconnection of the connectors is guaranteed for up to 500 cycles. Temperature range is -65 °C to +165 °C. Most of the current cellular routers are equipped with SMA connectors for connecting Wi-Fi / 2G / 3G / LTE / GPS antennas terminated by proticates. It is also used as a standard connector in RF measuring technology. They are characterized by high reliability, durability, high mechanical stability and optimal electrical properties.

This connector is designed intended for coaxial cable type THD.

Material and finish:

• Body: brass / gold-plated nickel
• Cover: brass / gold-plated nickel
• Insulator: teflon / -
• Ferrule: brass / gold

Parameters:

• Type: Female (f)
• Impedance: 50 Ω
• VSWR: <1.3
• Maximum frequency: 0-18 GHz
• Insulation resistance: 1 000 MΩ
• Center contact resistance: 3 mΩ
• Outer contact resistance: 2 mΩ
• Working voltage: 500 V rms
• Mating cycles: 500
• Operating temperature: - 65 °C to + 165 °C
• Weight: 4 g

Technical parameters can be found in the attached datasheet.

Parameters

Frequency range: 18 GHz impendance: 50 Ohm
Insertion loss: ≤0.04 × √f (GHz) dB Connector: SMA(f) R/A
Max. VSWR: <1.16:1 Working temperature: -65 °C ~ 165 °C
Working voltage: 500 V rms
