Product code: AO-SFT-04-6.4
Producer: SECTRON

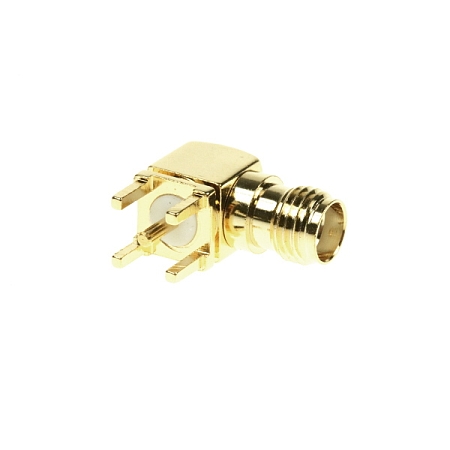

Connector SMA(f) R/A THD [6.4]

Product code: AO-SFT-04-6.4
Producer: SECTRON

Connector SMA(f) R/A THD [6.4]

Connector SMA (f) is designed for soldering to the panel using the THD method.

2.35incl. VAT (21%) / pc

excl. VAT 1.94 € / pc

Price from 10 pieces 1.55 €

Price from 100 pieces 1.39 €

In stock < 10 pc
- +
Add to compare

If the customer is not registered for VAT, the rate according to his country of residence will be added.

Detailed description

Connector SMA (f) R/A, THD [6.4]

These are high-frequency connectors with screw connection mechanism is light weight, compact and vibration proof design. The characteristic impedance of the connectors is 50 Ohm and the operating frequency range up to 18 GHz. There are two types of SMA connectors, namely SMA and RP-SMA. The connection and disconnection of the connectors is guaranteed for up to 500 cycles. Temperature range is -65 °C to +165 °C. Most of the current cellular routers are equipped with SMA connectors for connecting Wi-Fi / 2G / 3G / LTE / GPS antennas terminated by proticates. It is also used as a standard connector in RF measuring technology. They are characterized by high reliability, durability, high mechanical stability and optimal electrical properties.

This is a type of connector that is designed for mounting on a PCB using the THD method.

Material and finish:

• Body 1: Brass/Gold
• Body 2: Brass/Gold
• PIN: Brass/Gold
• Insulator 1: PTFE/ -
• Insulator 2: PTFE/ -
• Insulator 3: PTFE/ -


• Type: Female (f)
•* Impedance*: 50 Ω
• Maximum frequency: 0-18 GHz
 Mating cycles: 500 cycles
• Operating temperature: - 65 °C to + 165 °C
• Weight: 4 g

Technical parameters can be found in the attached datasheet or contact our sales department.


Execuion THD PCB

2.35incl. VAT (21%) / pc

excl. VAT 1.94 € / pc
