Connector SMB(m) R/A, THD

Product code: AO-BMT-04 /Manufacturer: SECTRON

konektor-bmt-04-sectron-01 bmt-04-03 bmt-04-02

52.55 EUR Without VAT

In stock When do I get the item?

Price from 10 pieces 47.29 EUR

Price from 100 pieces 42.62 EUR

If the customer is not registered for VAT, the rate according to his country of residence will be added.
guarantee 24 months
Subject*
Name and surname*
E-mail*
Inquiry*
By submitting the form, you agree to the privacy policy.
Your name and surname*
E-mail*
Send e-mail*
Message*
By submitting the form, you agree to the privacy policy.

Description

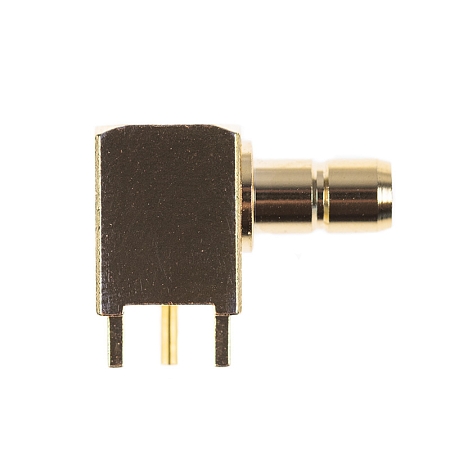

Connector SMB (m) R/A, THD

SMB coaxial connectors are characterized by high reliability and mechanical stability. Snap-on mechanism provides fast and reliable connection. The characteristic impedance of the connector is 50 Ohm and the working frequency ranges up to 4 GHz. They are used, for example, to connect wireless WLAN devices, test devices and GSM / GPS / Wi-Fi antennas.

The connector SMB (m) R/A is designed for mounting on a PCB using the THD method.

Material and finish:

• Ferrule: brass / gold over nickel
• Pin contact: brass / gold over nickel
• Insulator: PTFE / -
• Body: beryllium copper / gold over nickel

Parameters:

 • Type: Male (m)
 • Impedance: 50 Ω
 • Maximum Frequency: 0-6 GHz
 • Insulation Resistance: 1 000 MΩ
 • Outer contact: 1 MΩ
 • Center contact: 5 MΩ
 • Mating Cycles: 500
 • Operating Temperature: - 65 °C to + 165 °C

Technical parameters can be found in the attached datasheet or contact our sales department.


Parameters

Connector: SMB(m)
