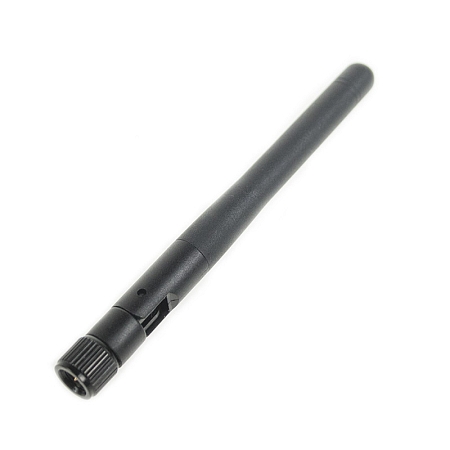

External Terminal Antenna, 868 MHz, 1 dBi, SMA(m)

Product code: AW-A868-79S /Manufacturer: SECTRON

aw-a868-79s-01 aw-a868-79s-02 aw-a868-79s-03

4.57 EUR

In stock When do I get the item?

guarantee 24 months
Subject*
Name and surname*
E-mail*
Inquiry*
By submitting the form, you agree to the privacy policy.
Your name and surname*
E-mail*
Send e-mail*
Message*
By submitting the form, you agree to the privacy policy.

Description

Omnidirectional antenna ZigBee antenna

Omnidirectional articulated antenna with SMA connector suitable as receiver/transmitter of signal in ISM. The antenna works on the 868 MHz frequency. It is constructed for ZigBee technology. It is also perfectly suitable for control units and sensors.

Connector specifications SMA:

These are high-frequency connectors with screw connection mechanism. The characteristic impedance of the connector is 50 Ohm and the operating frequency range up to 18 GHz. There are two types of SMA connectors, namely SMA and RP-SMA. Most of the current cellular routers are equipped with SMA connectors for connecting Wi-Fi / 2G / 3G / LTE / GPS antennas terminated by proticates. It is also used as a standard connector in RF measuring technology. They are characterized by high reliability, durability, high mechanical stability and optimal electrical properties.

Technical parameters can be found in the attached datasheet.

Parameters

impendance: 50 Ohm Connector: SMA(m)
Maximum input power: 10 W max. Polarization: Linear
Execution: External Operational temperature: -20 °C - +55 °C
Dimensions: 87 x 26.5 mm / 104 x 10 mm Directivity: Omni-directional
Technology : Zig-Bee Weight: 11.1 g
VSWR: <1.51:1 Radiation angle: H 360° V 30°
TYPE OF ATTACHMENT: Screw
