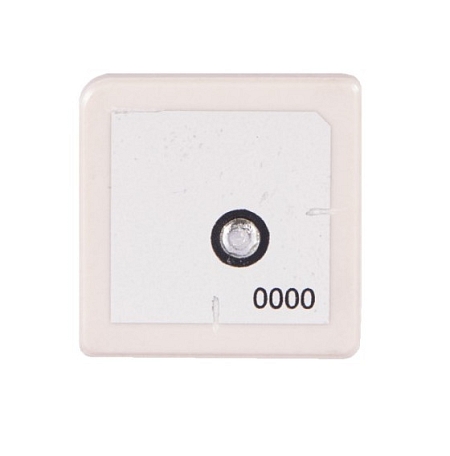

Internal GNSS (GPS/GLONASS) active antenna, 31 dBi, 25x25x4 mm, 1.37 mm cable L/10cm, U.FL
Detailed description
Directional internal antenna for GPS and GLONASS. The antenna operates in two bands, 1545.72 and 1602 MHz. The antenna reaches up to 31 dBi gain when combined with an amplifier. The antenna is suitable for navigation devices in vehicles.
More information can be found in the attached datasheet.
Parameters
| Impedance | 50 Ohm | Cabel | RF 1.37 | ||
|---|---|---|---|---|---|
| Connector | U.FL(f) R/A | Maximum input power | 10 W | ||
| Polarization | R.H.C.P. | Execuion | Internal | ||
| Operating temperature | -30 ~ +90 °C | Dimensions | 25 x 25 x 8.5 mm | ||
| Directivity | Directional | Technology | GPS , GLONASS | ||
| Weight | 12.99 g | Gain | 31 dBi , 30.3 dBi | ||
| VSWR | <2.0:1 , <1.3:1 | Type of attachment | Soldered |
Documents to download
Other information
| Producer name | SECTRON s.r.o. |
|---|---|
| Producer address | Josefa Šavla 12, Ostrava - Mariánské Hory 709 00, Czech Republic |
| Producer e-mail | sales@sectron.cz |
| Producer phone | +420 556 621 020 |
10.85 € incl. VAT (21%) / pc
excl. VAT 8.97 € / pc
