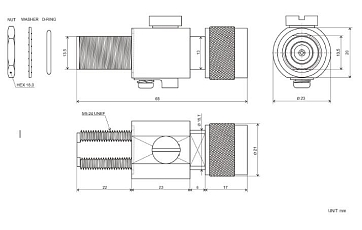

Lightning arrestor N(m)/N(f)

Product code: AO-LA-N /Manufacturer: SECTRON

krytka3-ip67

16.97 EUR

In stock When do I get the item?

Price from 10 pieces 16.12 EUR

Price from 100 pieces 15.27 EUR

guarantee 24 months
Subject*
Name and surname*
E-mail*
Inquiry*
By submitting the form, you agree to the privacy policy.
Your name and surname*
E-mail*
Send e-mail*
Message*
By submitting the form, you agree to the privacy policy.

Description

Lightning arrestor - N(m)/N(f)

A lightning arrester is a device that protects electrical equipment and devices from damage by electrical surge and direct and indirect lightning strikes.

Compatible with N(m) and N(f) RF connectors.

Reliable lightning arrester is designed for broadband use 0-6 GHz, insulation resistance is ≥ 10000 MΩ.

Features:

• Frequency range:  0-6 GHz
• VSWR:  1:1.3
• Insertion loss:  0.5 dBi
• Impedance:  50 Ω
• Insulation resistance:  ≥ 10000 MΩ
• Max withstand current:  20 A
• Gas tube impulse breakdown voltage:  ≤ 700 V
 Tolerance on the breakdown voltage:  DC 230 V ± 20%
• RF power rating:  15 W

Technical parameters can be found in the attached datasheet.

Parameters

Frequency: 0-6000 MHz Impedance: 50 Ohm
Connector: N(f) / N(m) Maximum current: 20 A
Isolation resistance: 10000 M Penetrative impulsive voltage: 700 V
Input decline: 0.5 dBi Max VSWR: 1.3 Max
