Lightning arrestor TNC(m)/TNC(f)

Product code: AO-LA-TNC /Manufacturer: SECTRON

Sale
krytka4-ip67

13.82 EUR Without VAT

On request When do I get the item?

Price from 10 pieces 13.13 EUR

Price from 100 pieces 12.44 EUR

If the customer is not registered for VAT, the rate according to his country of residence will be added.
guarantee 24 months
Subject*
Name and surname*
E-mail*
Inquiry*
By submitting the form, you agree to the privacy policy.
Your name and surname*
E-mail*
Send e-mail*
Message*
By submitting the form, you agree to the privacy policy.

Description

Lightning arrestor TNC(m)-TNC(f)

A lightning arrester is a device that protects electrical equipment and devices from damage by electrical surge and direct and indirect lightning strikes.

Compatible with TNC (m) and TNC (f) RF connectors.

Reliable lightning arrester is designed for broadband use 0-6 GHz, insulation resistance is ≥ 10000 MΩ.

Features:

• Frequency range: 0-6 GHz
• VSWR: 1:1.5
• Insertion loss: 0.8 dBi
• Impedance: 50 Ω
• Insulation resistance: ≥ 10000 MΩ
• Max withstand current: 20 A
• Gas tube impulse breakdown voltage: ≤ 700 V
Tolerance on the breakdown voltage: DC 230 V ± 20%
• RF power rating: 15 W

Technical parameters can be found in the attached datasheet.

Parameters

impendance: 50 Ohm Izolační odpor: 10000 M Ohm
Connector: TNC(m). TNC(f) Maximální proudová zátěž: 20 A
Maximum input power: 15 W max. Napětí: 230 V

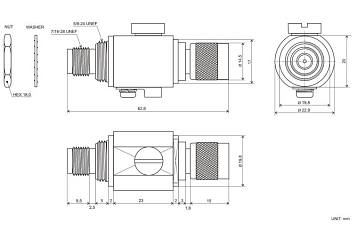

Dimensions: 62.8 x 22.9 mm Weight: 101.85 g
Vložená ztráta: 0.8 dBi VSWR: <1.5:1
