Magnet Mount Antenna Base, SMA(f) on base, SMA(m) on cable, LMH100/3m

Product code: AO-ABASE-C16-100
Producer: SECTRON

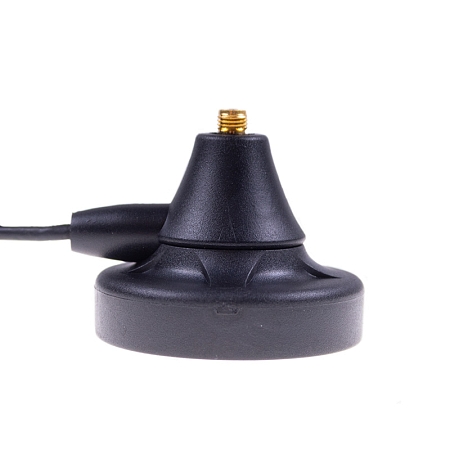

Magnet Mount Antenna Base, SMA(f) on base, SMA(m) on cable, LMH100/3m

Magnetic base for antennas with SMA(f) connector.

10.87incl. VAT (21%) / pc

excl. VAT 8.98 € / pc

In stock < 10 pc
i
- +
Add to compare

If the customer is not registered for VAT, the rate according to his country of residence will be added.

Detailed description

Magnetic base for antennas with SMA (f) connector, cable LMH100

Magnetic base with SMA (f) connector and characteristic impedance of 50 Ω. 3m LMH100 cable with SMA (m). This base is particularly suitable in combination with antennas requiring a counterweight with SMA (m) connector.

Connector specifications SMA:

These are high-frequency connectors with screw connection mechanism. The characteristic impedance of the connector is 50 Ohm and the operating frequency range up to 18 GHz. There are two types of SMA connectors, namely SMA and RP-SMA. Most of the current cellular routers are equipped with SMA connectors for connecting Wi-Fi / 2G / 3G / LTE / GPS antennas terminated by proticates. It is also used as a standard connector in RF measuring technology. They are characterized by high reliability, durability, high mechanical stability and optimal electrical properties.

Cable specifications LMH100:

The LMH100 coaxial cable is compatible with connectors applicable to 2.8 mm cable outer diameters, such as SMA Male, TNC Male, N Male, N Female. It is mainly used for the frequency range 0-6 GHz. The characteristic impedance is 50 Ω. The most common cables of this type have a temperature range -40 ° C to + 85 ° C. The .100 cable is used to connect antennas as well as VHF and UHF applications. It is suitable for indoor and outdoor applications. There are also specially modified types of LMH100 cables for outdoor use, which are UV resistant, as well as for use in extreme conditions. There are made of different materials, different qualities.

Technical parameters can be found in the attached datasheet.

Parameters

Impedance 50  Ohm Cabel .100
Connector SMA(f) Execuion External
Operating temperature -30 ~ +90  °C Dimensions 50 x 33.2  mm
Technology LTE , GSM , UMTS Weight 136.2  g
VSWR <1.3:1 Type of attachment Magnetic
Ingress protection (IP) ISO 9001 , ISO 14001 Material PP PVC 40P

10.87incl. VAT (21%) / pc

excl. VAT 8.98 € / pc
